Andante 9; Telefunken (ID = 1212266) Radio

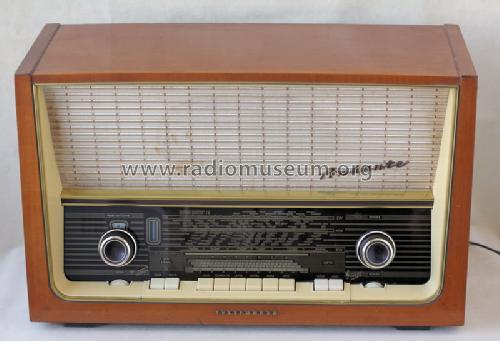

Telefunken: Andante 9 [Radio] ID = 1212266 800x547
Select picture or schematic to display from thumbnails on the right and click for download.
For model Andante 9, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
Telefunken Andate9: Obviously this model has been imported to Finland as 'chassis' because the cabinet has Finnish manufacture tag (Keravan Puuseppätehdas). The reason may be to get lower import tax. So final assembly has been made by Finnish importer.

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1958/1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM84 EL84
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker 3 Loudspeakers
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Andante 9 - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 590 x 360 x 260 mm / 23.2 x 14.2 x 10.2 inch
Notes KW-Lupe, drehbare Ferritantenne.
Im VDRG-Handbuch 1958/59 wird fälschlicherweise die EM80 als Anzeigeröhre genannt.
Net weight (2.2 lb = 1 kg) 11.3 kg / 24 lb 14.2 oz (24.89 lb)
Price in first year of sale 374.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1958/59
