Bayreuth 653WLK (T653WLK)

Bayreuth 653WLK ; Telefunken (ID = 26432) Radio

Bayreuth 653WLK ; Telefunken (ID = 719671) Radio

Bayreuth 653WLK ; Telefunken (ID = 719672) Radio

Bayreuth 653WLK ; Telefunken (ID = 243920) Radio

Bayreuth 653WLK ; Telefunken (ID = 243921) Radio

Bayreuth 653WLK ; Telefunken (ID = 243922) Radio

Bayreuth 653WLK ; Telefunken (ID = 243923) Radio

Bayreuth 653WLK ; Telefunken (ID = 243924) Radio

Bayreuth 653WLK ; Telefunken (ID = 26433) Radio

Bayreuth 653WLK ; Telefunken (ID = 721426) Radio
Bayreuth 653WLK ; Telefunken (ID = 608338) Radio Bayreuth 653WLK ; Telefunken (ID = 47318) Radio
Bayreuth 653WLK ; Telefunken (ID = 75727) Radio Bayreuth 653WLK ; Telefunken (ID = 3267) Radio
Bayreuth 653WLK ; Telefunken (ID = 47316) Radio Bayreuth 653WLK ; Telefunken (ID = 608339) Radio
Bayreuth 653WLK ; Telefunken (ID = 608340) Radio Bayreuth 653WLK ; Telefunken (ID = 1727048) Radio
Use red slider bar for more.
Bayreuth 653WLK ; Telefunken (ID = 608338) Radio

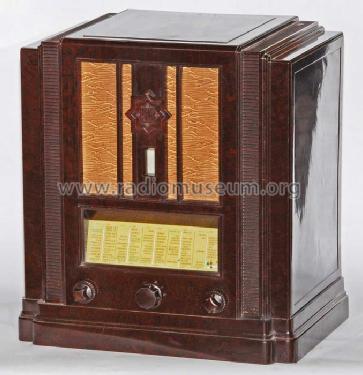

Telefunken: Bayreuth 653WLK [Radio] ID = 608338 678x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bayreuth 653WLK (T653WLK), Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1933–1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: RENS1234 RENS1224 RENS1234 REN924 RENS1374d RGN2004
Main principle Superhet with RF-stage; ZF/IF 132 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details Visual Tuning Indicator pre Eye
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 10 inch = 25.4 cm
Power out
from Radiomuseum.org Model: Bayreuth 653WLK - Telefunken Deutschland TFK,
Material Bakelite case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 440 x 460 x 300 mm / 17.3 x 18.1 x 11.8 inch
Notes

Mit Schattenzeiger zur Abstimmung (Orthoskop).

Siehe auch Bayreuth 654WK ohne Lautsprecher.
Paralleltype zum Siemens 56WLK.

Net weight (2.2 lb = 1 kg) 18 kg / 39 lb 10.4 oz (39.648 lb)
Price in first year of sale 385.00 RM !
Source of data Radio-Zentrale Prohaska 1933/34 / Radiokatalog Band 1, Ernst Erb

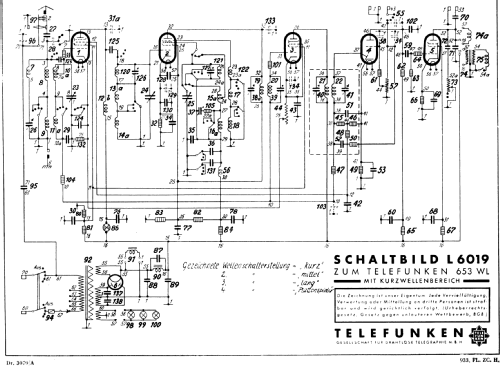

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Mentioned in Radio-Katalog Fricke, Radio Groß-Vertrieb, 1934/35
