Super Schrank Bayreuth 654WSK (T654WSK)

Super Schrank Bayreuth 654WSK ; Telefunken (ID = 721445) Radio

Super Schrank Bayreuth 654WSK ; Telefunken (ID = 719687) Radio

Super Schrank Bayreuth 654WSK ; Telefunken (ID = 719688) Radio

Super Schrank Bayreuth 654WSK ; Telefunken (ID = 7743) Radio
Super Schrank Bayreuth 654WSK ; Telefunken (ID = 1769822) Radio Super Schrank Bayreuth 654WSK ; Telefunken (ID = 1508557) Radio
Use red slider bar for more.
Super Schrank Bayreuth 654WSK ; Telefunken (ID = 1769822) Radio

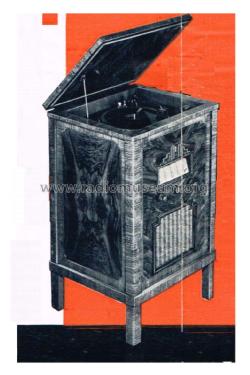

Telefunken: Super Schrank Bayreuth 654WSK [Radio] ID = 1769822 1032x1548
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super Schrank Bayreuth 654WSK (T654WSK), Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
Telefunken Prospekt, gültig ab März 1933 (Bild sollte vorangestellt werden - Nette Grüße)

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1933–1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: RENS1234 RENS1224 RENS1234 REN924 RENS1374d RGN2004
Main principle Superhet with RF-stage; ZF/IF 132 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Super Schrank Bayreuth 654WSK - Telefunken Deutschland TFK,
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 570 x 980 x 500 mm / 22.4 x 38.6 x 19.7 inch
Price in first year of sale 645.00 RM
Collectors' prices
Source of data Radio-Katalog Fricke 1934/35 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung


All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
