• Year
  • 1954/1955
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 90164

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 460 kHz; Export model
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and more than two Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC)
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Wooden case
  • from Radiomuseum.org

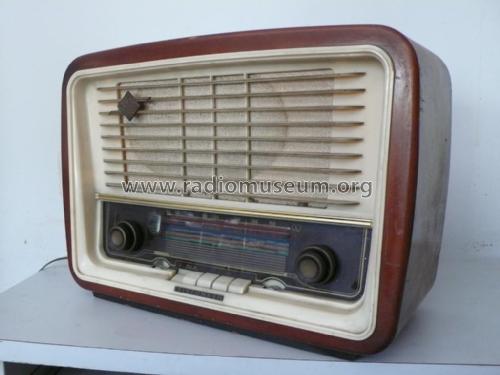

  • Model: D665WK trop - Telefunken Deutschland TFK,
  • Shape
  • Tablemodel with Push Buttons.
  • Notes
  • Export model.

    The magic eye type is uncertain, this model probably uses EM80 and a selenium rectifier, like the similar model D665WK.

  • Author
  • Model page created by Ernst Erb. See "Data change" for further contributors.
