- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1955 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 167918
from radio seller in www.yapo.cl
from radio seller in www.yapo.cl
from radio seller in www.yapo.cl

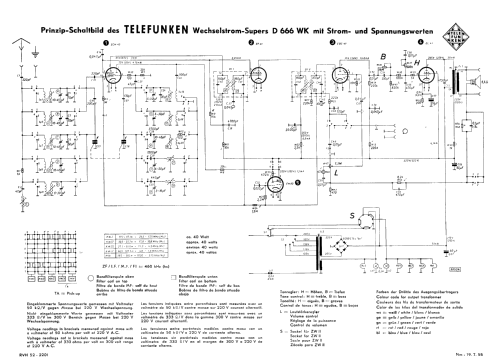

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s); Export model
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 100; 118; 150; 200; 230 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: D666WK trop - Telefunken Deutschland TFK,
- Notes
- Power rectifier B250C75L Receiving bands: 113-170m; 16.9-27.7m; 27.3-66.6m; 62.5_187.5m; 185/583m.
- Source of data
- - - Manufacturers Literature
- Author
- Model page created by Antonio Barros-Regada. See "Data change" for further contributors.
