Domino

Domino ; Telefunken Italia, (ID = 479997) Radio
Domino ; Telefunken Italia, (ID = 2298508) Radio Domino ; Telefunken Italia, (ID = 2298500) Radio
Domino ; Telefunken Italia, (ID = 2298503) Radio Domino ; Telefunken Italia, (ID = 2298509) Radio
Domino ; Telefunken Italia, (ID = 2298510) Radio Domino ; Telefunken Italia, (ID = 314512) Radio
Domino ; Telefunken Italia, (ID = 314514) Radio Domino ; Telefunken Italia, (ID = 386160) Radio
Domino ; Telefunken Italia, (ID = 314513) Radio Domino ; Telefunken Italia, (ID = 386157) Radio
Use red slider bar for more.
Domino ; Telefunken Italia, (ID = 2298508) Radio
Telefunken Italia,: Domino [Radio] ID = 2298508 1400x929
Select picture or schematic to display from thumbnails on the right and click for download.
For model Domino, Telefunken Italia, Milano

Country:  Italy
Manufacturer / Brand:  Telefunken Italia, Milano
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: UCC85 UCH81 UF89 UABC80 UM80 UL41 UY85
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, 2 Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Domino - Telefunken Italia, Milano
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 510 x 345 x 210 mm / 20.1 x 13.6 x 8.3 inch
Notes

Serie ANIE MF.

Anche varianti con UY41 anziché UY85.

Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Source of data Guida Pratica Antique Radio (1) 1999
Mentioned in Il museo della radio; Primo Boselli; 1992

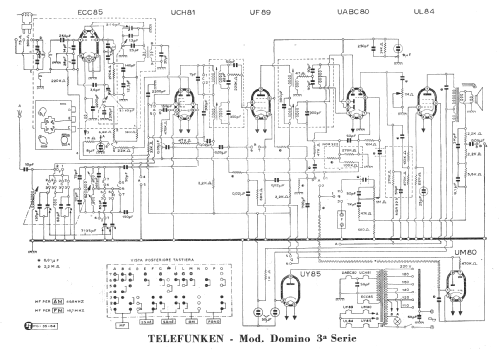

Literature/Schematics (1) -- Schematic (D.E. Ravalico, Il Radiolibro, 16° edizione, 1957, Hoepli)

Model page created by Ettore Rossi. See "Data change" for further contributors.
