• Country
• Italy

• Manufacturer / Brand
• Telefunken Italia, Milano

• Year
• 1964 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 333331

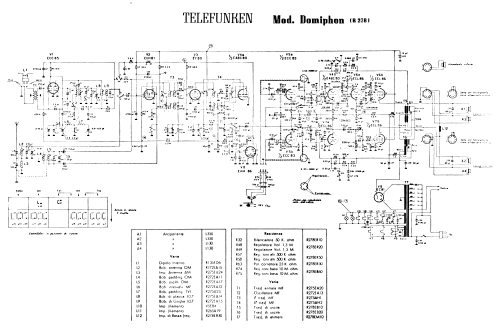

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EAM86 ECC83 ECL86 ECL86 EZ81

• Main principle
• Superheterodyne (common)

• Wave bands
• Wave Bands given in the notes.

• Details

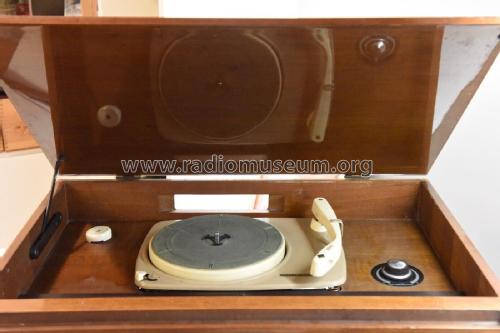

• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Domiphon R278 - Telefunken Italia, Milano

• Shape
• Tablemodel with Push Buttons.

• Notes

• Radio OM, TV1, TV2 e FM stereo.
  Giradischi stereo. Controllo toni acuti e bassi e bilanciamento.
  Collegamento per registratore play/record.

• Mentioned in
• -- Schematic (Scuola Radio Elettra, Corso Radio Stereo, 1964/65 Schemario/Abaco)

• Author
• Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
