Ela V 410/1; Telefunken (ID = 422969) Ampl/Mixer

Ela V 410/1; Telefunken (ID = 422971) Ampl/Mixer

Ela V 410/1; Telefunken (ID = 422970) Ampl/Mixer

Ela V 410/1; Telefunken (ID = 422973) Ampl/Mixer

Next pictures

Use red slider bar for more.

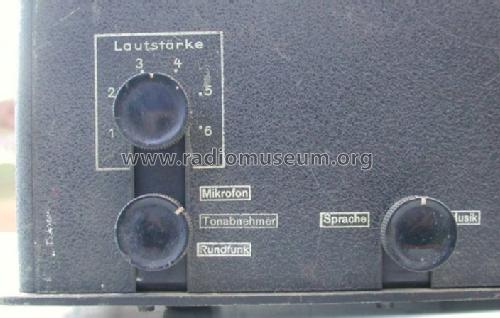

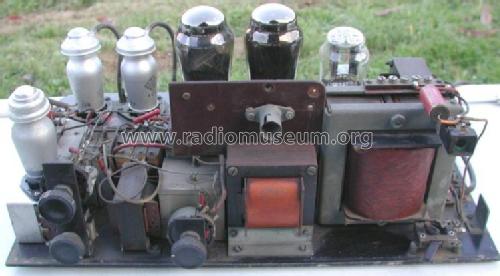

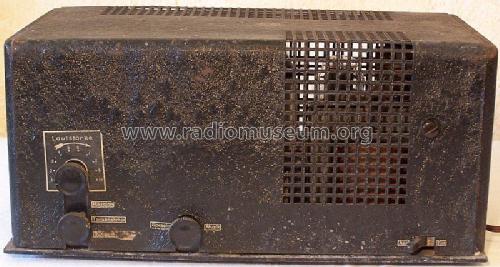

Telefunken: Ela V 410/1 [Ampl/Mixer] ID = 422969 720x496

Select picture or schematic to display from thumbnails on the right and click for download.

For model Ela V 410/1, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
aus ebay, Verkäufer kydippe

Country:

Germany

Manufacturer / Brand:

Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Year: 1939/1940

Category: Audio Amplifier or -mixer

Valves / Tubes

5: AC2 AC2 AD1 AD1 AZ12

Main principle	Audio-Amplification; 3 AF stage(s)
Wave bands	- without
Details
Power type and voltage	Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker	- This model requires external speaker(s).
Power out	10 W (unknown quality)
from Radiomuseum.org	Model: Ela V 410/1 - Telefunken Deutschland TFK,
Material	Metal case
Shape	Tablemodel, with any shape - general.
Dimensions (WHD)	430 x 205 x 245 mm / 16.9 x 8.1 x 9.6 inch
Notes	Eingangs-Steuerspannung: 80 mV; Ausgangs-Impedanzen: 15 und 200 Ohm.
Net weight (2.2 lb = 1 kg)	13.5 kg / 29 lb 11.8 oz (29.736 lb)
Price in first year of sale	368.00 RM
Source of data	Handbuch WDRG 1939 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference	Lange + FS-Bestückungstabellen

All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Here you find 3470 models, 3039 with images and 2008 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.

Collection of a member from D
