FE10/43Sta

FE10/43Sta; Telefunken (ID = 313662) Television
Use red slider bar for more.
FE10/43Sta; Telefunken (ID = 313662) Television

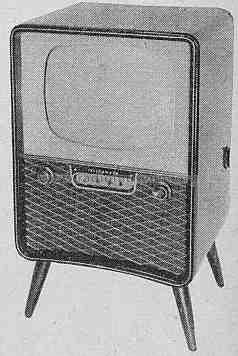

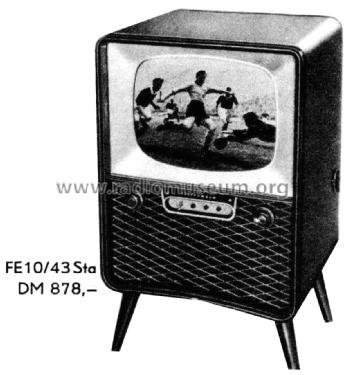

Telefunken: FE10/43Sta [Television] ID = 313662 238x356
Select picture or schematic to display from thumbnails on the right and click for download.
For model FE10/43Sta, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1955/1956 Category: Television Receiver (TV) or Monitor
Valves / Tubes 18: PCC84 PCF82 EF80 EF80 EF80 EF80 PL83 ECC82 ECC81 PL82 EC92 PL81 PY83 DY80 EF80 PABC80 PL82 MW43-64
Main principle Superheterodyne (common); ZF/IF 25750 kHz
Wave bands Wave Bands given in the notes.
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: FE10/43Sta - Telefunken Deutschland TFK,
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 516 x 850 x 422 mm / 20.3 x 33.5 x 16.6 inch
Notes Dioden: OA159, OA160, 2× OA161. 12 VHF-Kanäle.
Net weight (2.2 lb = 1 kg) 34 kg / 74 lb 14.2 oz (74.89 lb)
Price in first year of sale 878.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1955/56
