- Country
- Germany
- Manufacturer / Brand
- Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
- Year
- 1952/1953
- Category
- Television Receiver (TV) or Monitor
- Radiomuseum.org ID
- 83782
Zeilenendstufe
Zeilentrafo
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 20

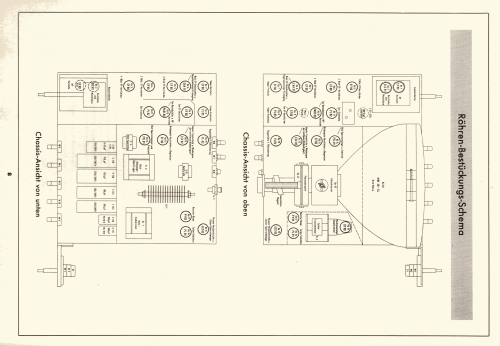

- Valves / Tubes
- EF80 ECC81 EF80 EF80 EF80 EAA91 EF80 PL83 EF80 PABC80 PL82 PCL81 EF80 ECC82 PL82 ECC82 PL81 PY83 DY80 MW36-24
- Number of Transistors
- Semiconductors
- E220C500

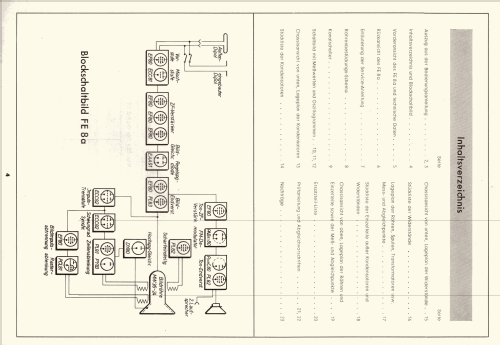

- Main principle
- Superhet with RF-stage; ZF/IF 25275/5500 kHz
- Wave bands
- VHF incl. FM and/or UHF (see notes for details)
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 4 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org

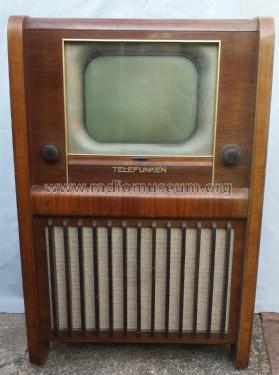

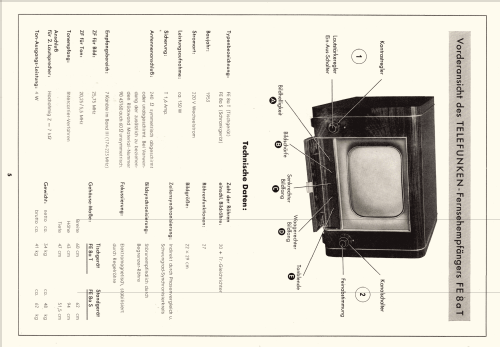

- Model: FE8aS - Telefunken Deutschland TFK,
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 623 x 950 x 515 mm / 24.5 x 37.4 x 20.3 inch
- Notes
-
Empfangsbereich: 7 Kanäle im Band III (174 - 223 MHz).
Anschluss für 2. Lautsprecher, hochohmig, ca 7 KΩ.
- Net weight (2.2 lb = 1 kg)
- 49 kg / 107 lb 14.9 oz (107.93 lb)
- Mentioned in

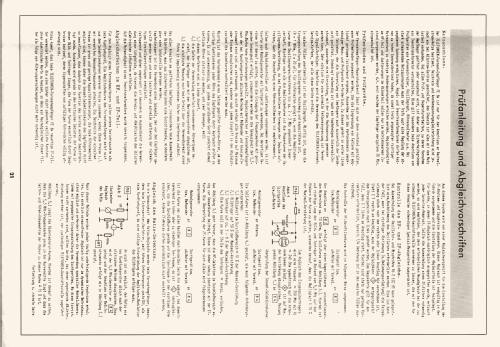

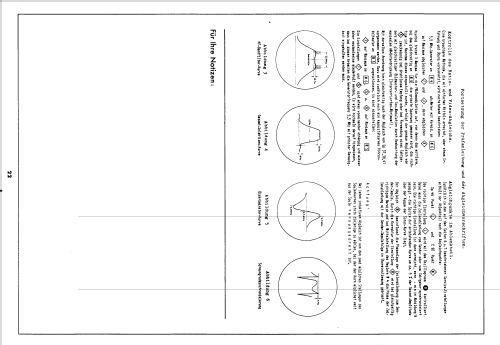

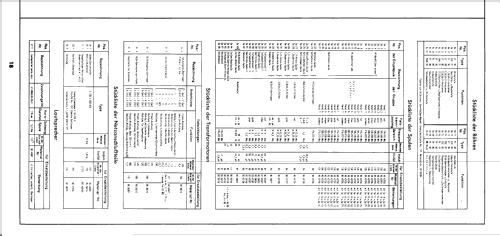

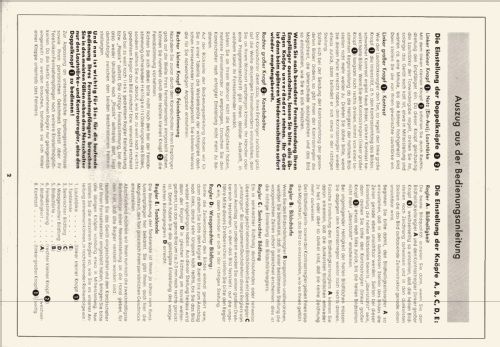

- -- Original-techn. papers. (Technische Daten und ETL-Liste)
- Author
- Model page created by Folkert Rothe. See "Data change" for further contributors.
