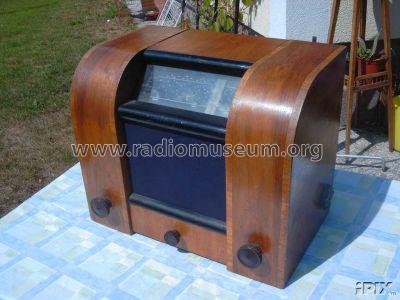

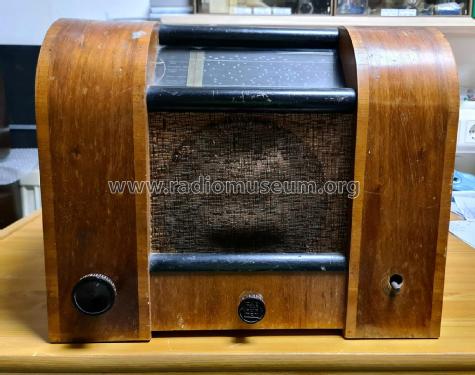

Fünfer 546WLK (T546WLK)

Fünfer 546WLK ; Telefunken; Wien (ID = 7698) Radio

Fünfer 546WLK ; Telefunken; Wien (ID = 14760) Radio

Fünfer 546WLK ; Telefunken; Wien (ID = 2068980) Radio
Fünfer 546WLK ; Telefunken; Wien (ID = 99048) Radio Fünfer 546WLK ; Telefunken; Wien (ID = 232573) Radio
Fünfer 546WLK ; Telefunken; Wien (ID = 99049) Radio Fünfer 546WLK ; Telefunken; Wien (ID = 21640) Radio
Fünfer 546WLK ; Telefunken; Wien (ID = 1527431) Radio Fünfer 546WLK ; Telefunken; Wien (ID = 2068979) Radio
Use red slider bar for more.
Fünfer 546WLK ; Telefunken; Wien (ID = 99048) Radio
Telefunken; Wien: Fünfer 546WLK [Radio] ID = 99048 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model Fünfer 546WLK (T546WLK), Telefunken; Wien

Country:  Austria
Manufacturer / Brand:  Telefunken; Wien
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner

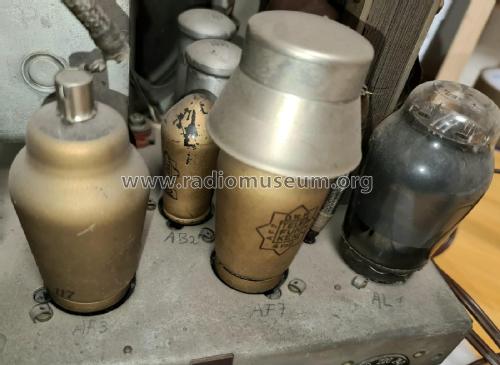

Valves / Tubes 6: AK2 AF3 AB2 AF7 AL1 AZ1
Main principle Superheterodyne (common); ZF/IF 484 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details Visual Tuning Indicator pre Eye
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: Fünfer 546WLK - Telefunken; Wien
Material Wooden case
Notes

Abstimm-Anzeige

External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange + Schenk
Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from Telefunken; Wien
Here you find 109 models, 95 with images and 79 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
