• Country
• Spain

• Manufacturer / Brand
• Telefunken Radiotécnica Ibérica; Getafe

• Year
• 1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 80486

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF93 EABC80 EM80 EL84 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, more than 2 SW bands plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 125, 150, 220 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Gran Vals FM A-1967-FM - Telefunken Radiotécnica

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 530 x 337 x 250 mm / 20.9 x 13.3 x 9.8 inch

• Notes

• Speakers-Ø 16,5 cm and 13 cm.

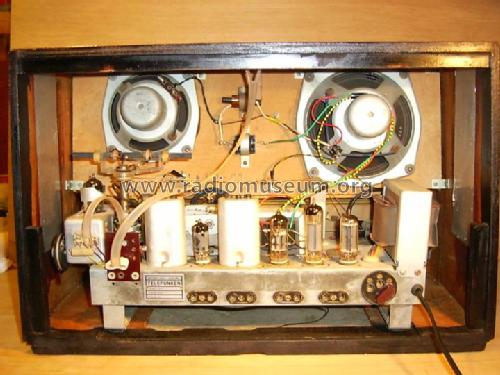

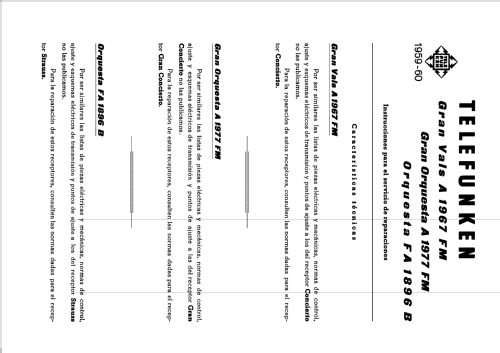

  Véase manual técnico del Concierto A-1857-FM

• Net weight (2.2 lb = 1 kg)
• 9 kg / 19 lb 13.2 oz (19.824 lb)

• Price in first year of sale
• 6,300.00 ESP

• Literature/Schematics (1)
• - - Manufacturers Literature

• Literature/Schematics (4)
• Anuncio La Vanguardia Española octubre 1959

• Author
• Model page created by Juan Antonio Pardo-Alonso. See "Data change" for further contributors.
