Gross-Super Juwel 539W (T539W)

Gross-Super Juwel 539W ; Telefunken; Wien (ID = 397932) Radio

Gross-Super Juwel 539W ; Telefunken; Wien (ID = 397933) Radio

Gross-Super Juwel 539W ; Telefunken; Wien (ID = 7690) Radio

Gross-Super Juwel 539W ; Telefunken; Wien (ID = 7691) Radio

Gross-Super Juwel 539W ; Telefunken; Wien (ID = 2124627) Radio

Gross-Super Juwel 539W ; Telefunken; Wien (ID = 2124626) Radio
Gross-Super Juwel 539W ; Telefunken; Wien (ID = 75339) Radio Gross-Super Juwel 539W ; Telefunken; Wien (ID = 99002) Radio
Gross-Super Juwel 539W ; Telefunken; Wien (ID = 523744) Radio Gross-Super Juwel 539W ; Telefunken; Wien (ID = 524788) Radio
Gross-Super Juwel 539W ; Telefunken; Wien (ID = 99001) Radio Gross-Super Juwel 539W ; Telefunken; Wien (ID = 711657) Radio
Gross-Super Juwel 539W ; Telefunken; Wien (ID = 1664465) Radio
Use red slider bar for more.
Gross-Super Juwel 539W ; Telefunken; Wien (ID = 75339) Radio
Telefunken; Wien: Gross-Super Juwel 539W [Radio] ID = 75339 600x359
Select picture or schematic to display from thumbnails on the right and click for download.
For model Gross-Super Juwel 539W (T539W), Telefunken; Wien:
Telefunken Gross-Super 539W

Country:  Austria
Manufacturer / Brand:  Telefunken; Wien
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH11 EBF11 EL11 AZ11 EFM11
Main principle Superheterodyne (common); ZF/IF 484 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Gross-Super Juwel 539W - Telefunken; Wien
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 660 x 320 x 235 mm / 26 x 12.6 x 9.3 inch
Notes Schaltbare Sparschaltung.
Price in first year of sale 295.00 RM
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Lange + Schenk

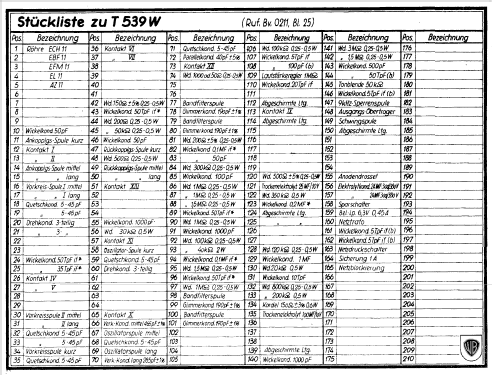

Literature/Schematics (1) -- Original-techn. papers.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
