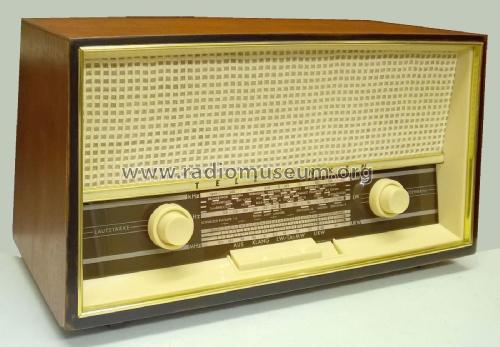

Jubilate 1351L (L1351) poliert

Jubilate 1351L ; Telefunken (ID = 101946) Radio

Jubilate 1351L ; Telefunken (ID = 101948) Radio

Jubilate 1351L ; Telefunken (ID = 101950) Radio

Jubilate 1351L ; Telefunken (ID = 101949) Radio

Jubilate 1351L ; Telefunken (ID = 101947) Radio
Jubilate 1351L ; Telefunken (ID = 101236) Radio Jubilate 1351L ; Telefunken (ID = 101235) Radio
Jubilate 1351L ; Telefunken (ID = 101234) Radio Jubilate 1351L ; Telefunken (ID = 101233) Radio
Jubilate 1351L ; Telefunken (ID = 2503918) Radio Jubilate 1351L ; Telefunken (ID = 2503760) Radio
Jubilate 1351L ; Telefunken (ID = 2503761) Radio Jubilate 1351L ; Telefunken (ID = 2503762) Radio
Jubilate 1351L ; Telefunken (ID = 2503764) Radio Jubilate 1351L ; Telefunken (ID = 2503765) Radio
Use red slider bar for more.
Jubilate 1351L ; Telefunken (ID = 101236) Radio
Telefunken: Jubilate 1351L [Radio] ID = 101236 893x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Jubilate 1351L (L1351) poliert, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1962/1963 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECC85 ECH81 EF89 EABC80 EL95
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Jubilate 1351L [poliert] - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 390 x 215 x 185 mm / 15.4 x 8.5 x 7.3 inch
Notes

L= Langwelle. Siehe auch Telefunken Jubilate 1351K mit KW statt LW-Bereich.

Net weight (2.2 lb = 1 kg) 5 kg / 11 lb 0.2 oz (11.013 lb)
Price in first year of sale 258.00 DM
External source of data Erb
Source of data Handbuch VDRG 1962/1963
Literature/Schematics (1) -- Original-techn. papers.
