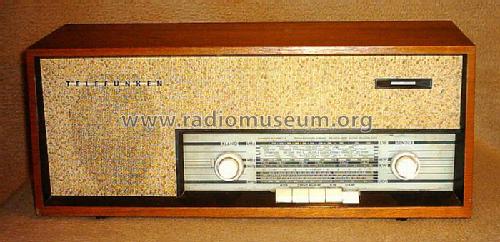

Jubilate Teak 1361; Telefunken (ID = 13648) Radio Jubilate Teak 1361; Telefunken (ID = 162752) Radio
Jubilate Teak 1361; Telefunken (ID = 1008489) Radio Jubilate Teak 1361; Telefunken (ID = 1008490) Radio
Jubilate Teak 1361; Telefunken (ID = 1008491) Radio Jubilate Teak 1361; Telefunken (ID = 1833956) Radio
Jubilate Teak 1361; Telefunken (ID = 1833957) Radio Jubilate Teak 1361; Telefunken (ID = 1833958) Radio
Use red slider bar for more.

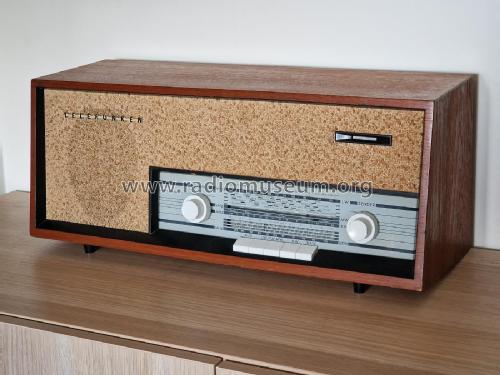

Jubilate Teak 1361; Telefunken (ID = 380659) Radio
Telefunken: Jubilate Teak 1361 [Radio] ID = 380659 600x265
Select picture or schematic to display from thumbnails on the right and click for download.
For model Jubilate Teak 1361, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:
Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1962–1964 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM84 EL95
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Jubilate Teak 1361 - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 525 x 225 x 205 mm / 20.7 x 8.9 x 8.1 inch
Net weight (2.2 lb = 1 kg) 5.9 kg / 12 lb 15.9 oz (12.996 lb)
Price in first year of sale 335.00 DM
External source of data Erb
Source of data Handbuch VDRG 1963/1964
