Magnetophon 77T Stereo

Magnetophon 77T Stereo; Telefunken (ID = 200997) R-Player

Magnetophon 77T Stereo; Telefunken (ID = 200998) R-Player

Magnetophon 77T Stereo; Telefunken (ID = 201006) R-Player

Magnetophon 77T Stereo; Telefunken (ID = 201007) R-Player

Magnetophon 77T Stereo; Telefunken (ID = 201004) R-Player

Magnetophon 77T Stereo; Telefunken (ID = 201005) R-Player

Magnetophon 77T Stereo; Telefunken (ID = 200999) R-Player

Magnetophon 77T Stereo; Telefunken (ID = 201000) R-Player

Magnetophon 77T Stereo; Telefunken (ID = 201002) R-Player

Magnetophon 77T Stereo; Telefunken (ID = 201003) R-Player
Magnetophon 77T Stereo; Telefunken (ID = 2448000) R-Player Magnetophon 77T Stereo; Telefunken (ID = 2448001) R-Player
Magnetophon 77T Stereo; Telefunken (ID = 2182866) R-Player Magnetophon 77T Stereo; Telefunken (ID = 2182867) R-Player
Magnetophon 77T Stereo; Telefunken (ID = 2182868) R-Player Magnetophon 77T Stereo; Telefunken (ID = 2182869) R-Player
Magnetophon 77T Stereo; Telefunken (ID = 2182870) R-Player Magnetophon 77T Stereo; Telefunken (ID = 2182871) R-Player
Magnetophon 77T Stereo; Telefunken (ID = 201009) R-Player Magnetophon 77T Stereo; Telefunken (ID = 1075482) R-Player
Use red slider bar for more.
Magnetophon 77T Stereo; Telefunken (ID = 2448000) R-Player
Telefunken: Magnetophon 77T Stereo [R-Player] ID = 2448000 1200x961
Select picture or schematic to display from thumbnails on the right and click for download.
For model Magnetophon 77T Stereo, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:

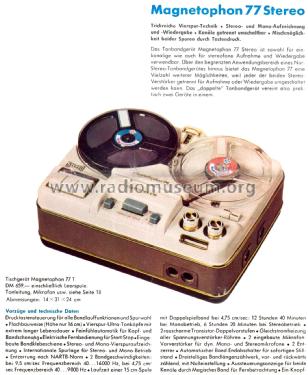

Q: Telefunken, Tobandgeräte-Katalog '59

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1959–1961 Category: Sound/Video Recorder and/or Player
Valves / Tubes 5: ECC83 ECC83 EL95 EL95 EM84
Semiconductors (the count is only for transistors) 4: OC603 OC603 OC603 OC603 B250C65 B30C400 B30C10
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 50Hz, 110; 127; 150; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 5 W (max.)
from Radiomuseum.org Model: Magnetophon 77T Stereo - Telefunken Deutschland TFK,
Material Various materials
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 310 x 160 x 320 mm / 12.2 x 6.3 x 12.6 inch
Notes

Tischgerät ohne Lautsprecher mit 2 Endstufen
Vierspur; Bandgeschwindigkeiten 4,75/9,5 cm/s; Spulen-Ø 15 cm.
NF-Ausgangsleistung 2× 2,5 W.
Siehe auch Telefunken Magnetophon 77TE Stereo für Betrieb an 50 oder 60Hz Wechselstrom.

Siehe auch Parallelmodell AEG Magnetophon 77T Stereo.

Net weight (2.2 lb = 1 kg) 9.5 kg / 20 lb 14.8 oz (20.925 lb)
Price in first year of sale 659.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1960/61
Mentioned in Handbuch für Rundfunk Fernsehen Phono (RFP) 1959/60 S.334
Literature/Schematics (1) -- Original-techn. papers.
Literature/Schematics (2) Funk-Technik (FT) (19/1959 S. 698 (Bericht von der dt. Rundf.- FS- u. Phonoausstellung Frankfurt))
