Markstein-Super 755W (T755W)

Markstein-Super 755W ; Telefunken (ID = 37564) Radio

Markstein-Super 755W ; Telefunken (ID = 37566) Radio

Markstein-Super 755W ; Telefunken (ID = 719725) Radio

Markstein-Super 755W ; Telefunken (ID = 719727) Radio

Markstein-Super 755W ; Telefunken (ID = 37565) Radio

Markstein-Super 755W ; Telefunken (ID = 7837) Radio
Markstein-Super 755W ; Telefunken (ID = 2503713) Radio Markstein-Super 755W ; Telefunken (ID = 2503714) Radio
Markstein-Super 755W ; Telefunken (ID = 2503715) Radio Markstein-Super 755W ; Telefunken (ID = 3255) Radio
Markstein-Super 755W ; Telefunken (ID = 59079) Radio Markstein-Super 755W ; Telefunken (ID = 59080) Radio
Markstein-Super 755W ; Telefunken (ID = 59078) Radio Markstein-Super 755W ; Telefunken (ID = 457457) Radio
Markstein-Super 755W ; Telefunken (ID = 708772) Radio Markstein-Super 755W ; Telefunken (ID = 720995) Radio
Use red slider bar for more.
Markstein-Super 755W ; Telefunken (ID = 2503713) Radio
Telefunken: Markstein-Super 755W [Radio] ID = 2503713 1400x761

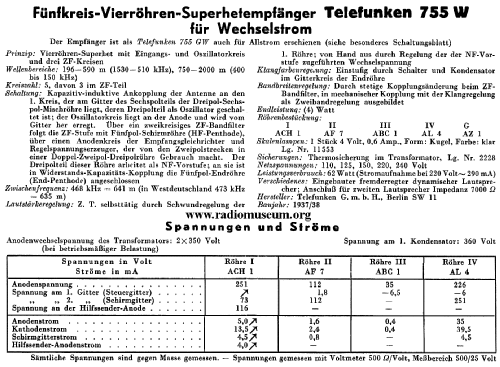

Select picture or schematic to display from thumbnails on the right and click for download.
For model Markstein-Super 755W (T755W), Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH:

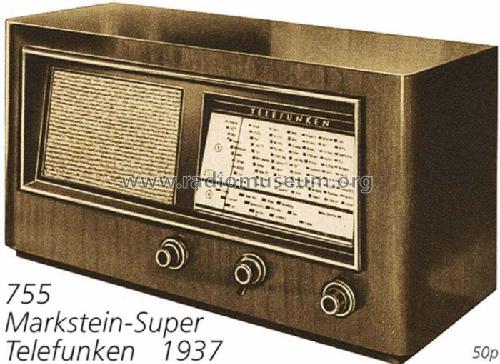

Telefunken 755W Hauptansicht

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ACH1 AF7 ABC1 AL4 AZ1
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 22 cm = 8.7 inch
Power out
from Radiomuseum.org Model: Markstein-Super 755W - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 613 x 325 x 312 mm / 24.1 x 12.8 x 12.3 inch
Notes =Siemens 74W.
variable Bandbreite.
Schachtelhalm-Spulen.
Net weight (2.2 lb = 1 kg) 14.7 kg / 32 lb 6.1 oz (32.379 lb)
Price in first year of sale 234.00 RM
Source of data Handbuch WDRG 1937 / Radiokatalog Band 1, Ernst Erb

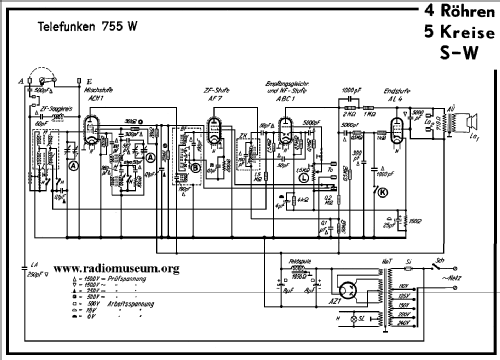

Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
