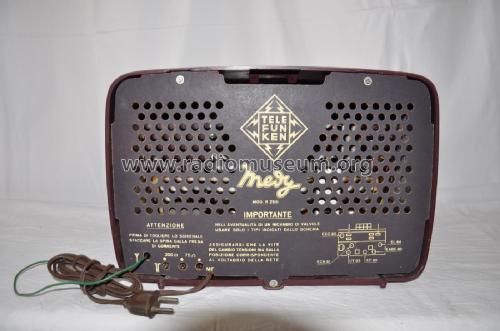

Medy R266

Medy R266; Telefunken Italia, (ID = 1432003) Radio
Medy R266; Telefunken Italia, (ID = 1955483) Radio Medy R266; Telefunken Italia, (ID = 1955485) Radio
Medy R266; Telefunken Italia, (ID = 1955484) Radio Medy R266; Telefunken Italia, (ID = 2570709) Radio
Medy R266; Telefunken Italia, (ID = 2570711) Radio Medy R266; Telefunken Italia, (ID = 2113447) Radio
Medy R266; Telefunken Italia, (ID = 1912287) Radio Medy R266; Telefunken Italia, (ID = 1912289) Radio
Medy R266; Telefunken Italia, (ID = 1912288) Radio Medy R266; Telefunken Italia, (ID = 1955482) Radio
Use red slider bar for more.
Medy R266; Telefunken Italia, (ID = 1955483) Radio
Telefunken Italia,: Medy R266 [Radio] ID = 1955483 1400x1280
Select picture or schematic to display from thumbnails on the right and click for download.
For model Medy R266, Telefunken Italia, Milano

Country:  Italy
Manufacturer / Brand:  Telefunken Italia, Milano
Year: 1960/1961 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EL84 UY85
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 120-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (undistorted)
from Radiomuseum.org Model: Medy R266 - Telefunken Italia, Milano
Material Moulded (Bakelite or Plastics)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 330 x 210 x 170 mm / 13 x 8.3 x 6.7 inch
Notes Riceve anche audio TV.
Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Price in first year of sale 24'900.00 ITL
Source of data Guida Pratica Antique Radio III (2000)
Mentioned in Catalogo ANIE (1960-1961)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
