Meky IV R541

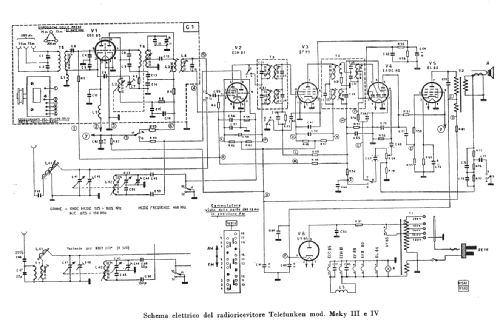

Meky IV R541; Telefunken Italia, (ID = 1846062) Radio
Meky IV R541; Telefunken Italia, (ID = 387344) Radio Meky IV R541; Telefunken Italia, (ID = 387346) Radio

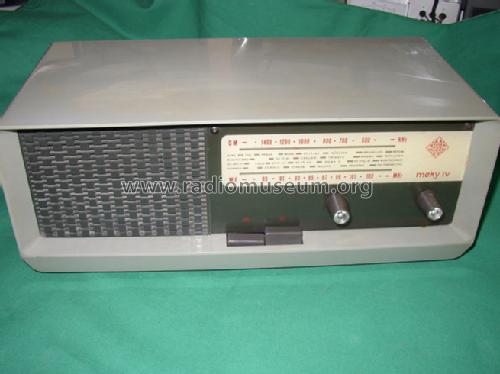

Meky IV R541; Telefunken Italia, (ID = 387345) Radio Meky IV R541; Telefunken Italia, (ID = 754065) Radio
Meky IV R541; Telefunken Italia, (ID = 754066) Radio Meky IV R541; Telefunken Italia, (ID = 754067) Radio
Meky IV R541; Telefunken Italia, (ID = 1141599) Radio Meky IV R541; Telefunken Italia, (ID = 2075052) Radio
Meky IV R541; Telefunken Italia, (ID = 2075053) Radio Meky IV R541; Telefunken Italia, (ID = 2075054) Radio
Use red slider bar for more.
Meky IV R541; Telefunken Italia, (ID = 387344) Radio
Telefunken Italia,: Meky IV R541 [Radio] ID = 387344 933x384
Select picture or schematic to display from thumbnails on the right and click for download.
For model Meky IV R541, Telefunken Italia, Milano

Country:  Italy
Manufacturer / Brand:  Telefunken Italia, Milano
Year: 1964 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EL84 UY85
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Meky IV R541 - Telefunken Italia, Milano
Material Plastics (no bakelite or catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 360 x 170 x 150 mm / 14.2 x 6.7 x 5.9 inch
Notes uno dei primi cablati su circuito stampato
Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Source of data Guida Pratica Antique Radio IV (2001)
Mentioned in - - Data from my own collection

Model page created by Franco Antolini. See "Data change" for further contributors.
