Nauen 330WLK (T330WLK)

Nauen 330WLK ; Telefunken (ID = 19950) Radio

Nauen 330WLK ; Telefunken (ID = 19955) Radio

Nauen 330WLK ; Telefunken (ID = 717798) Radio

Nauen 330WLK ; Telefunken (ID = 717799) Radio

Nauen 330WLK ; Telefunken (ID = 11033) Radio

Nauen 330WLK ; Telefunken (ID = 232393) Radio

Nauen 330WLK ; Telefunken (ID = 243606) Radio

Nauen 330WLK ; Telefunken (ID = 19966) Radio

Nauen 330WLK ; Telefunken (ID = 19951) Radio

Nauen 330WLK ; Telefunken (ID = 7574) Radio
Nauen 330WLK ; Telefunken (ID = 3266) Radio Nauen 330WLK ; Telefunken (ID = 298182) Radio
Nauen 330WLK ; Telefunken (ID = 1316101) Radio Nauen 330WLK ; Telefunken (ID = 18215) Radio
Nauen 330WLK ; Telefunken (ID = 18216) Radio Nauen 330WLK ; Telefunken (ID = 111869) Radio
Nauen 330WLK ; Telefunken (ID = 111870) Radio Nauen 330WLK ; Telefunken (ID = 298181) Radio
Nauen 330WLK ; Telefunken (ID = 1316091) Radio Nauen 330WLK ; Telefunken (ID = 1316092) Radio
Use red slider bar for more.
Nauen 330WLK ; Telefunken (ID = 3266) Radio

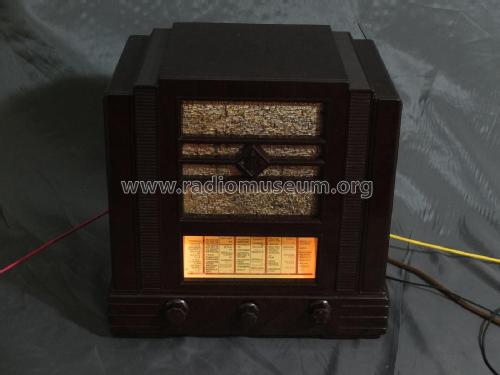

Telefunken: Nauen 330WLK [Radio] ID = 3266 527x530
Select picture or schematic to display from thumbnails on the right and click for download.
For model Nauen 330WLK (T330WLK), Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1933–1935 Category: Broadcast Receiver - or past WW2 Tuner

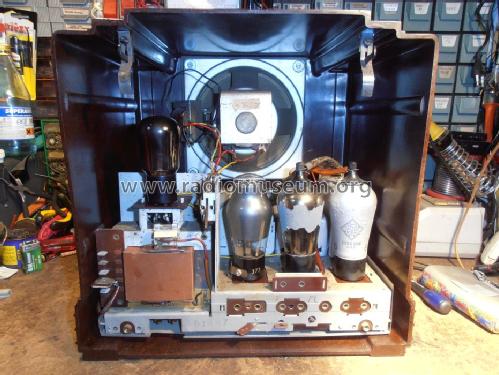

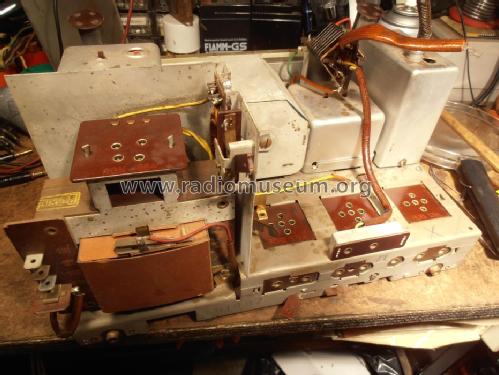

Valves / Tubes 4: RENS1264 RENS1264 RENS1374d RGN1064
Main principle Super-Heterodyne (Super in general); ZF/IF 232 or 500 kHz; Super, reaction, but not adjustable
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet.
Power out
from Radiomuseum.org Model: Nauen 330WLK - Telefunken Deutschland TFK,
Material Bakelite case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 325 x 330 x 235 mm / 12.8 x 13 x 9.3 inch
Notes

ZF - MW = 232 kHz,
ZF - LW = 500 kHz.
Kathoden - Mischung.

Paralleltype zum Telefunken Nauen 431WLK.
Paralleltype zum AEG Super-Geatron 303WLK in anderem Gehäuse.
Paralleltype zum Siemens Sport-Super 36WLK in anderem Gehäuse.

Price in first year of sale 235.00 RM !
Collectors' prices
Source of data Radio-Zentrale Prohaska 1933/34 / Radiokatalog Band 1, Ernst Erb

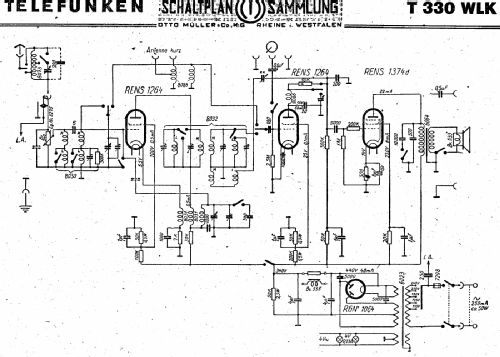

Circuit diagram reference Lange + Schenk
Mentioned in Radio-Katalog Fricke 1934/35
Literature/Schematics (1) Funk Bastler (Funkbastler 1933, Heft 35, Seite 559)
Literature/Schematics (2) -- Original-techn. papers.


All listed radios etc. from Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Here you find 3339 models, 2889 with images and 1921 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
