Operette 49W ; Telefunken (ID = 889552) Radio
Telefunken: Operette 49W [Radio] ID = 889552 933x706
Select picture or schematic to display from thumbnails on the right and click for download.
For model Operette 49W (T49W), Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1949/1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH11 EBF11 ECL11 AZ11 EM11
Main principle Superheterodyne (common); ZF/IF 472 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Ready for FM, has Broadcast, Long Wave, Short wave.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Operette 49W - Telefunken Deutschland TFK,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 516 x 383 x 242 mm / 20.3 x 15.1 x 9.5 inch

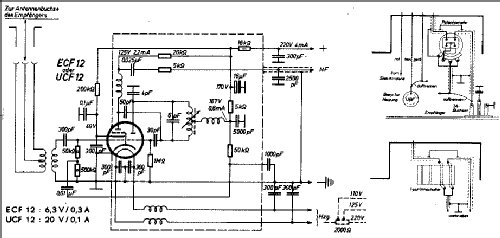

Notes Nachf.9H... Für das Modell Operette 49 konnte man den UKW-Nachrüstsatz Telefunken UKW 1C nachkaufen und an der Rückwand verschrauben.
Net weight (2.2 lb = 1 kg) 11 kg / 24 lb 3.7 oz (24.229 lb)
Price in first year of sale 398.00 DM
Source of data Radiokatalog Band 1, Ernst Erb

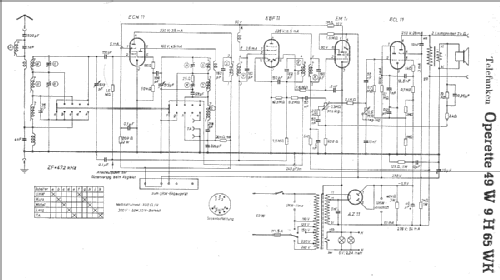

Circuit diagram reference Lange-Nowisch
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
