Aristokrat 33 280

Loewe-(Opta); Deutschland

  • Year
  • 1962/1963
  • Category
  • Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
  • Radiomuseum.org ID
  • 24383
    • alternative name: Löwe Radio

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 0
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Wave Bands given in the notes.
  • Details
  • Changer (Record changer); Radio Control (+Remote Wire etc)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org

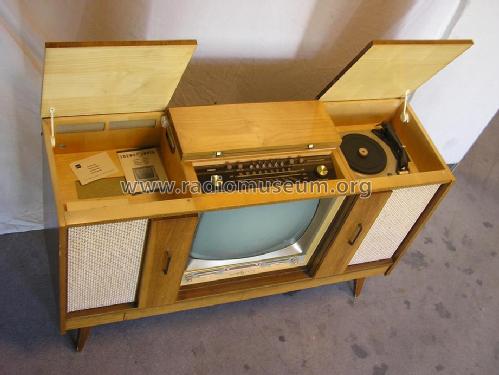

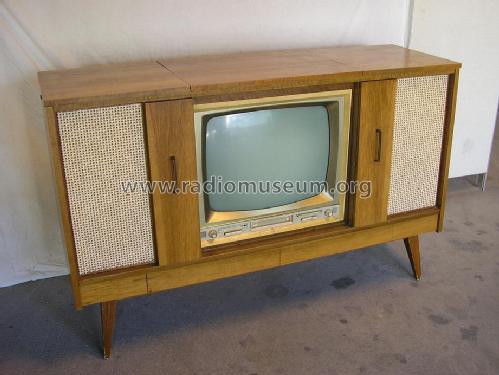

  • Model: Aristokrat 33 280 - Loewe-Opta; Deutschland
  • Shape

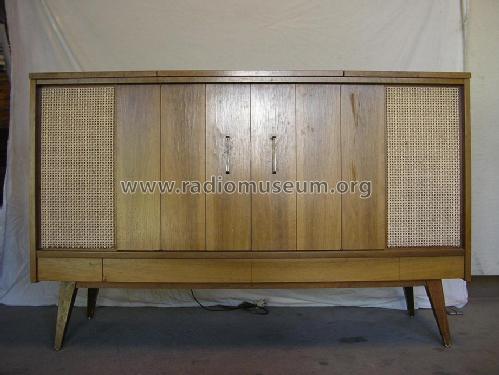

  • Console, Lowboy (legs < 50 %).
  • Dimensions (WHD)
  • 1480 x 940 x 470 mm / 58.3 x 37 x 18.5 inch
  • Notes

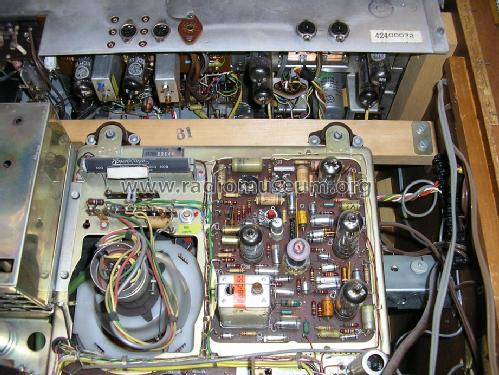

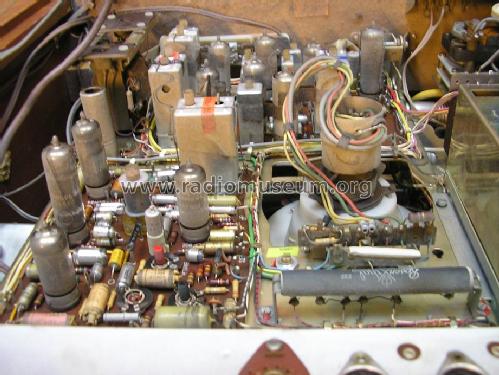

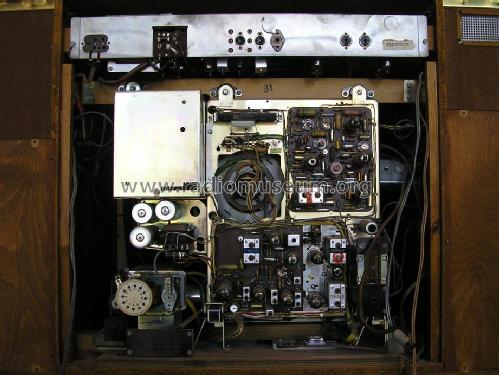

  • Fernseh-Chassis = Ariadne 33 080;
    Rundfunk-Chassis = 32 874;

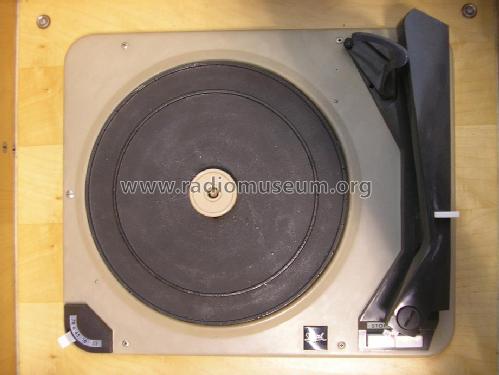

    Phono-Chassis = Dual 1008.
  • Net weight (2.2 lb = 1 kg)
  • 100 kg / 220 lb 4.2 oz (220.264 lb)
  • Price in first year of sale
  • 2,798.00 DM
  • External source of data
  • Erb
