• Year
  • 1958/1959
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 21778

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 9
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 8 AM circuit(s)     12 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
  • Loudspeaker
  • 6 Loudspeakers
  • Power out
  • 10 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

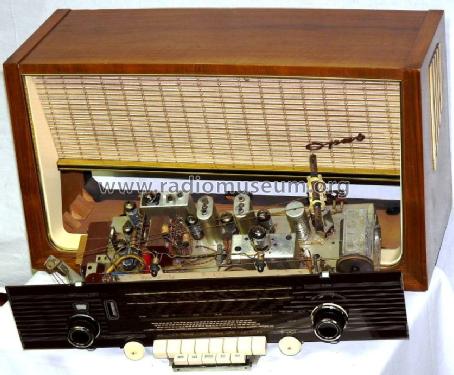

  • Model: Opus 9 Hi-Fi [dunkel] - Telefunken Deutschland TFK,
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 675 x 385 x 285 mm / 26.6 x 15.2 x 11.2 inch
  • Notes
  • Drehbare Ferritantenne. Chassis entspricht AEG 7088WD, UKW-AFC über UKW Senderwahlknopf schaltbar, KW-Lupe, schaltbare Bandbreite.
    Im Schema ist die Polarität des Ratiodetektor-Elkos falsch gezeichnet, richtig ist Pluspol an Masse.
  • Net weight (2.2 lb = 1 kg)
  • 15.3 kg / 33 lb 11.2 oz (33.7 lb)
  • Price in first year of sale
  • 539.00 DM
  • External source of data
  • Erb
