• Year
  • 1938/1939
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 4281

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 468 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Details
  • Record Player (not changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 110-240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

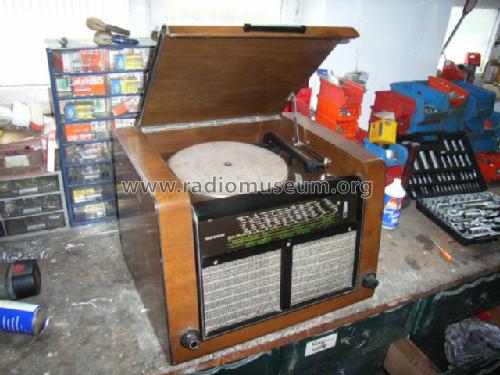

  • Model: Phono 875WKS - Telefunken Deutschland TFK,
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 568 x 398 x 478 mm / 22.4 x 15.7 x 18.8 inch
  • Notes
  • Feldstärkeanzeige, Bandbreitenregelung.
  • Net weight (2.2 lb = 1 kg)
  • 20.2 kg / 44 lb 7.9 oz (44.493 lb)
  • Price in first year of sale
  • 375.00 RM
  • Circuit diagram reference
  • Lange+Schenk+FS-Röhrenbestückung
  • Picture reference
  • Das Modell ist im «Radiokatalog» (Erb) abgebildet.
