Porti 1700S

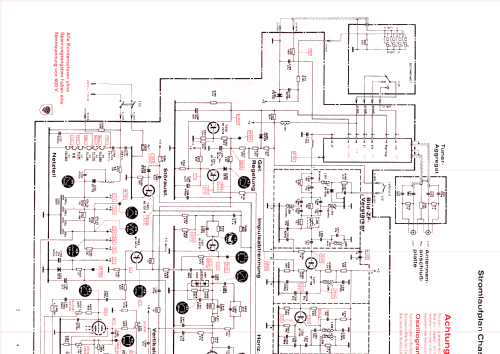

Porti 1700S; Telefunken (ID = 445389) Television

Porti 1700S; Telefunken (ID = 445390) Television
Porti 1700S; Telefunken (ID = 936993) Television Porti 1700S; Telefunken (ID = 445388) Television
Use red slider bar for more.
Porti 1700S; Telefunken (ID = 936993) Television
Telefunken: Porti 1700S [Television] ID = 936993 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Porti 1700S, Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

Country:  Germany
Manufacturer / Brand:  Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH
Year: 1973 Category: Television Receiver (TV) or Monitor
Valves / Tubes 6: PCL86 PCL805 PCF802 PL504 PY88 A44-120W
Semiconductors (the count is only for transistors) 15: TBA120 ZD12 OA90
Main principle Superheterodyne (common)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Porti 1700S - Telefunken Deutschland TFK,
Material Plastics (no bakelite or catalin)
Shape Tablemodel with Push Buttons.
Notes Empfangsbereich VHF/UHF.
2 Ausführungen: weiß und orange. Vergleiche mit dem 1971 erschienenen Porti 1700 electronic Volltransistor!
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
