• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1951/1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 74501

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECH42 EF80 EAF42 EAA91 EM11 EL41

• Number of Transistors

• Semiconductors
• 250E60L

• Main principle
• Superheterodyne (common); ZF/IF 472/10700 kHz; 2 AF stage(s); Reflex

• Tuned circuits
• 6 AM circuit(s)     7 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org

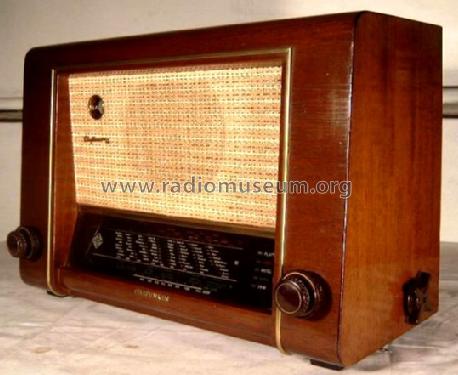

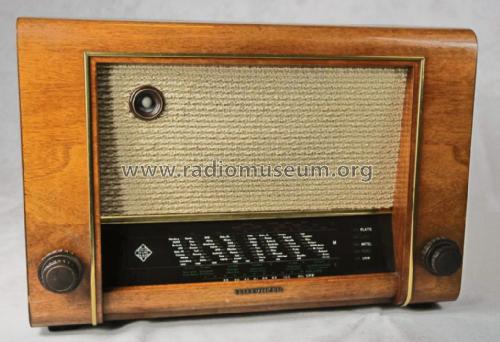

• Model: Rhythmus 52R [Wechselstrom] - Telefunken Deutschland TFK,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 500 x 340 x 220 mm / 19.7 x 13.4 x 8.7 inch

• Notes

• KW-Lupe. Wellenbereiche:

  • LW 150 - 375 kHz
  • MW 520 - 1620 kHz
  • KW 5,9 - 18,5 MHz
  • UKW 87,5 - 100 MHz

  Bei der Stellung "UKW" dient Rö2 (EF 80) als ZF- und NF-Verstärker in Reflexschaltung.

  Vorsicht: Chassis nicht vom Netz getrennt.

• Literature/Schematics (4)
• -- Original-techn. papers.

Bedienungsanleitung Tfk Rhythmus 52 R

372 KB
