Vierer 542WLK (T542WLK)

Vierer 542WLK ; Telefunken; Wien (ID = 1449663) Radio

Vierer 542WLK ; Telefunken; Wien (ID = 7695) Radio
Vierer 542WLK ; Telefunken; Wien (ID = 262845) Radio Vierer 542WLK ; Telefunken; Wien (ID = 80519) Radio
Vierer 542WLK ; Telefunken; Wien (ID = 80520) Radio Vierer 542WLK ; Telefunken; Wien (ID = 75330) Radio
Vierer 542WLK ; Telefunken; Wien (ID = 79005) Radio Vierer 542WLK ; Telefunken; Wien (ID = 40166) Radio
Vierer 542WLK ; Telefunken; Wien (ID = 80517) Radio Vierer 542WLK ; Telefunken; Wien (ID = 1527430) Radio
Vierer 542WLK ; Telefunken; Wien (ID = 2402153) Radio Vierer 542WLK ; Telefunken; Wien (ID = 2402154) Radio
Use red slider bar for more.
Vierer 542WLK ; Telefunken; Wien (ID = 262845) Radio

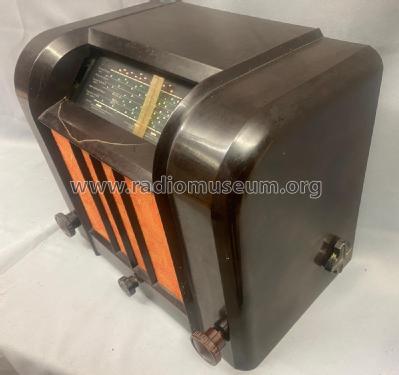

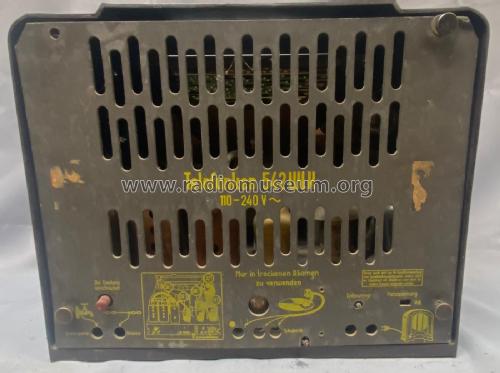

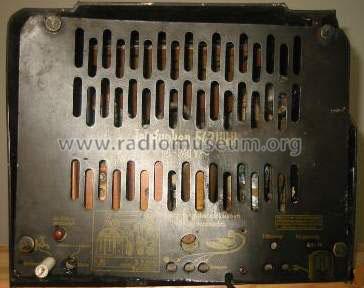

Telefunken; Wien: Vierer 542WLK [Radio] ID = 262845 710x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Vierer 542WLK (T542WLK), Telefunken; Wien

Country:  Austria
Manufacturer / Brand:  Telefunken; Wien
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: AK2 AF3 ABC1 AL1 AZ1
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: Vierer 542WLK - Telefunken; Wien
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 400 x 310 x 260 mm / 15.7 x 12.2 x 10.2 inch
Net weight (2.2 lb = 1 kg) 11 kg / 24 lb 3.7 oz (24.229 lb)
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Literature/Schematics (1) -- Original-techn. papers.
