Zeesen 875WK T875WK

• Country
• Germany

• Manufacturer / Brand
• Telefunken Deutschland (TFK), (Gesellschaft für drahtlose Telegraphie Telefunken mbH

• Year
• 1938/1939

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 4278

• Picture

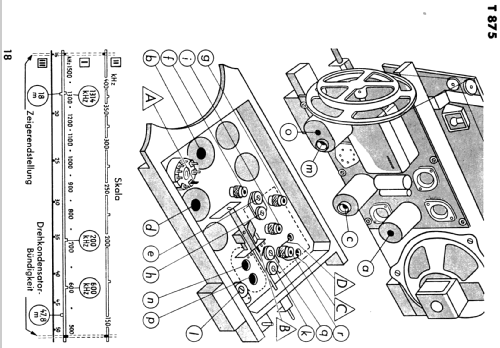

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• ACH1 AF3 ABC1 AL4 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Details
• Visual Tuning Indicator pre Eye

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Zeesen 875WK T875WK - Telefunken Deutschland TFK,

• Dimensions (WHD)
• 568 x 349 x 310 mm / 22.4 x 13.7 x 12.2 inch

• Notes

• Abstimmanzeige mit "Orthoskop". Variable Bandbreite.

  Siehe auch Exportmodell Orfeus T875WK.

• Net weight (2.2 lb = 1 kg)
• 12.6 kg / 27 lb 12.1 oz (27.753 lb)

• Price in first year of sale
• 239.00 RM

• Source of data
• Handbuch WDRG 1938 / Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange+Schenk+FS-Röhrenbestückung

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.
