Merkur 240
Use red slider bar for more.
TO-R Radio A/S; Vanl: Merkur 240 [Radio] ID = 149056 704x456

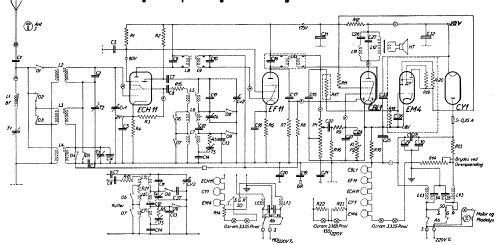

Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
Tor | ||||
|---|---|---|---|---|---|
| Year: 1940 ?? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 5: ECH11 EF11 CBL1 CY1 EM4 |
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | AC/DC-set / 110; 220; 235 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch |
| Power out | |
| from Radiomuseum.org | Model: Merkur 240 - TO-R Radio A/S; Vanløse |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 510 x 300 x 280 mm / 20.1 x 11.8 x 11 inch |
Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
