• Year
  • 1956 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 124195
    • Brand: Tor

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 10
  • Main principle
  • Superheterodyne (common); ZF/IF 447/10700 kHz; 4 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • AC/DC-set / 220 Volt
  • Material
  • Wooden case
  • from Radiomuseum.org

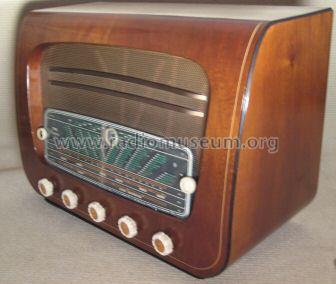

  • Model: Olympic F6FM - TO-R Radio A/S; Vanløse
  • Shape
  • Tablemodel, low profile (big size).
  • Source of data
  • -- Schematic
