Bildjuwel-UKW ; Tonfunk GmbH; (ID = 144707) TV Radio

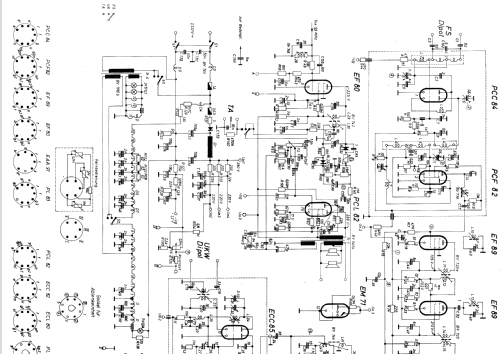

Tonfunk GmbH;: Bildjuwel-UKW [TV Radio] ID = 144707 822x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bildjuwel-UKW, Tonfunk GmbH; Karlsruhe

Country:  Germany
Manufacturer / Brand:  Tonfunk GmbH; Karlsruhe
Year: 1956/1957 Category: Television- and Radio Receiver, perh. also + Rec. etc. (TV Radio)
Valves / Tubes 21: PCC84 PCF82 EF89 EF89 EM71 EF89 EAA91 PL83 ECC82 PCL82 EAA91 ECL80 PL36 PY83 EY86 EF80 PCL82 MW43-69 ECC85 EC92 EF80
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Bildjuwel-UKW - Tonfunk GmbH; Karlsruhe
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 550 x 510 x 420 mm / 21.7 x 20.1 x 16.5 inch
Notes Kombinierter Fernseh- und UKW-Rundfunkempfänger.
Net weight (2.2 lb = 1 kg) 29 kg / 63 lb 14 oz (63.877 lb)
Price in first year of sale 899.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1956/57 / Radiokatalog Band 2, Ernst Erb

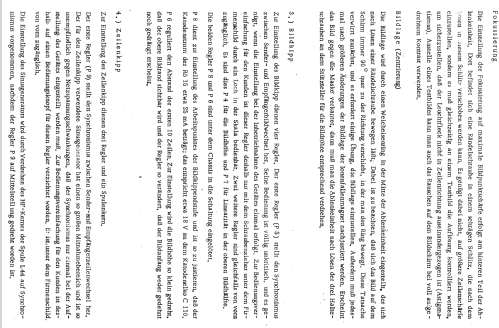

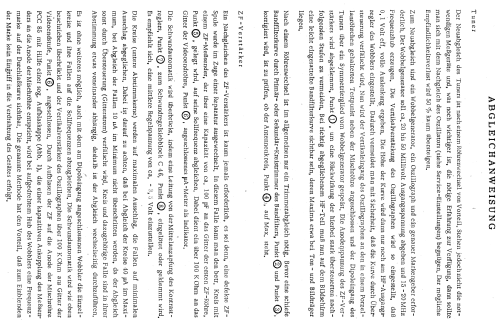

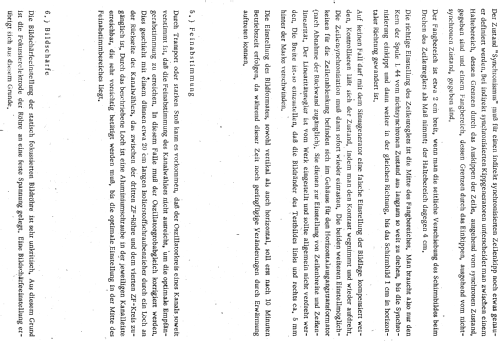

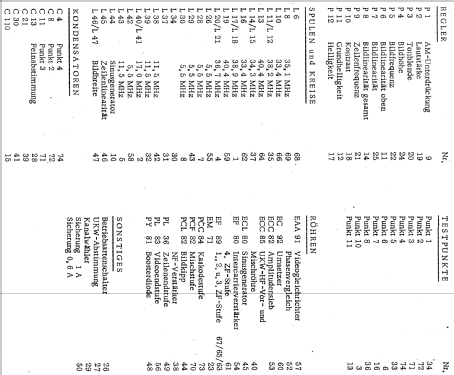

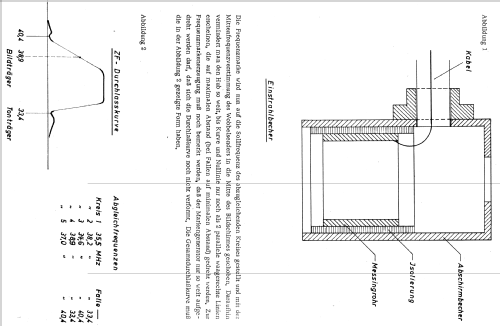

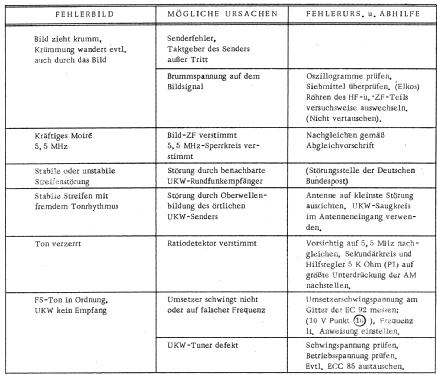

Literature/Schematics (1) -- Original-techn. papers.
