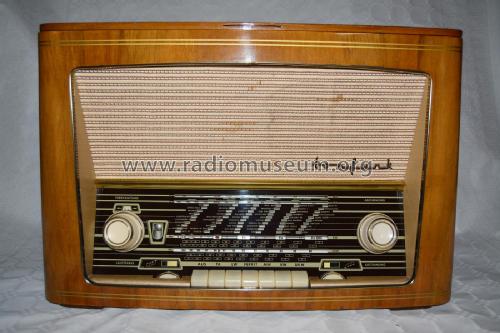

Phonoperle 58; Tonfunk GmbH; (ID = 2592231) Radio
Tonfunk GmbH;: Phonoperle 58 [Radio] ID = 2592231 1400x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Phonoperle 58, Tonfunk GmbH; Karlsruhe

Country:  Germany
Manufacturer / Brand:  Tonfunk GmbH; Karlsruhe
Year: 1957/1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF89 EABC80 EM80 EL84
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 8 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 120/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 5 W (unknown quality)
from Radiomuseum.org Model: Phonoperle 58 - Tonfunk GmbH; Karlsruhe
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 570 x 360 x 300 mm / 22.4 x 14.2 x 11.8 inch
Notes dreh- und abschaltbare Ferritantenne. Mehrpreis für helles Gehäuse 8,- DM.
Net weight (2.2 lb = 1 kg) 13.5 kg / 29 lb 11.8 oz (29.736 lb)
Price in first year of sale 449.00 DM
External source of data E. Erb 3-907007-36-0
Source of data HdB d.Rdf-& Ferns-GrH 1957/58 / Radiokatalog Band 2, Ernst Erb
