Violetta W502 Ch= W302 2x EF41

Violetta W502 Ch= W302; Tonfunk GmbH; (ID = 519630) Radio
Violetta W502 Ch= W302; Tonfunk GmbH; (ID = 794178) Radio Violetta W502 Ch= W302; Tonfunk GmbH; (ID = 794184) Radio
Violetta W502 Ch= W302; Tonfunk GmbH; (ID = 794180) Radio Violetta W502 Ch= W302; Tonfunk GmbH; (ID = 794185) Radio
Violetta W502 Ch= W302; Tonfunk GmbH; (ID = 794179) Radio Violetta W502 Ch= W302; Tonfunk GmbH; (ID = 794181) Radio
Violetta W502 Ch= W302; Tonfunk GmbH; (ID = 794186) Radio Violetta W502 Ch= W302; Tonfunk GmbH; (ID = 794187) Radio
Violetta W502 Ch= W302; Tonfunk GmbH; (ID = 979763) Radio Violetta W502 Ch= W302; Tonfunk GmbH; (ID = 1560797) Radio
Use red slider bar for more.
Violetta W502 Ch= W302; Tonfunk GmbH; (ID = 794178) Radio
Tonfunk GmbH;: Violetta W502 Ch= W302 [Radio] ID = 794178 699x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Violetta W502 Ch= W302 2x EF41, Tonfunk GmbH; Karlsruhe

Country:  Germany
Manufacturer / Brand:  Tonfunk GmbH; Karlsruhe
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EC92 ECH81 EF41 EF41 EM4 EABC80 EL84
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Superheterodyne (common); ZF/IF 468/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     10 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details Record Player (not changer)
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: Violetta W502 Ch= W302 [2x EF41] - Tonfunk GmbH; Karlsruhe
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 530 x 740 x 370 mm / 20.9 x 29.1 x 14.6 inch
Notes

Mit Rundfunkchassis vom W302.
PE (Perpetuum Ebner) Dreitourenlaufwerk eingebaut.

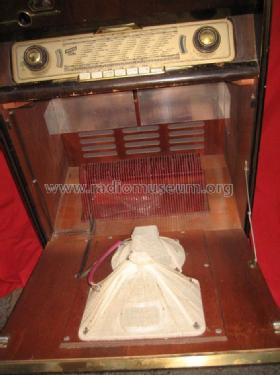

Record Player PE with 33, 45, 78 rpm. Dial lamps: 4x 6,3V/0,3A.

Siehe auch Tonfunk Violetta W502 mit 2x EF93 im ZF-Verstärker.

Net weight (2.2 lb = 1 kg) 21.5 kg / 47 lb 5.7 oz (47.357 lb)
Price in first year of sale 498.00 DM
External source of data E. Erb 3-907007-36-0
Source of data Kat.d.Rundf.GrossH.1953/54 / Radiokatalog Band 2, Ernst Erb


All listed radios etc. from Tonfunk GmbH; Karlsruhe
