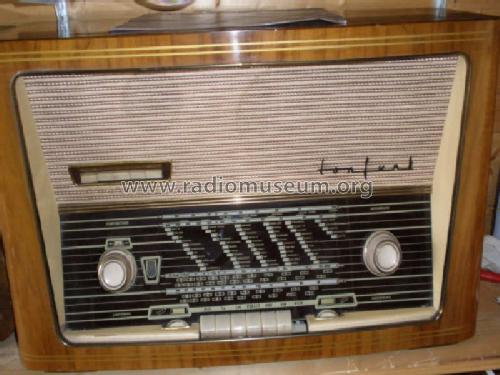

Tonjuwel 58 W347

Tonfunk GmbH; Karlsruhe

  • Year
  • 1957/1958
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 21233

Click on the schematic thumbnail to request the schematic as a free document.

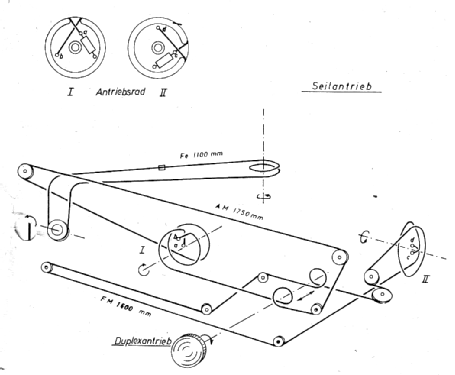

 Technical Specifications

  • Number of Tubes
  • 6
  • Number of Transistors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 8 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 120/220 Volt
  • Loudspeaker
  • 4 Loudspeakers
  • Power out
  • 5 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Tonjuwel 58 W347 - Tonfunk GmbH; Karlsruhe
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 680 x 390 x 250 mm / 26.8 x 15.4 x 9.8 inch
  • Notes
  • Dreh- und abschaltbare Ferritantenne. Schaltbild Nr.: W5197. Die Lautsprecher rechts u. links werden durch einen Schallkompressor angetrieben.
  • Net weight (2.2 lb = 1 kg)
  • 11 kg / 24 lb 3.7 oz (24.229 lb)
  • Price in first year of sale
  • 399.00 DM
  • External source of data
  • Erb
  • Literature/Schematics (1)
  • -- Original-techn. papers.

 Collections | Museums | Literature

Collections

The model Tonjuwel 58 is part of the collections of the following members.

 Forum

Forum contributions about this model: Tonfunk GmbH;: Tonjuwel 58 W347

Threads: 1 | Posts: 3

Hallo Forum,

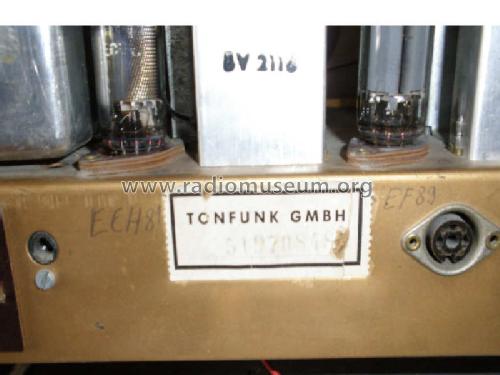

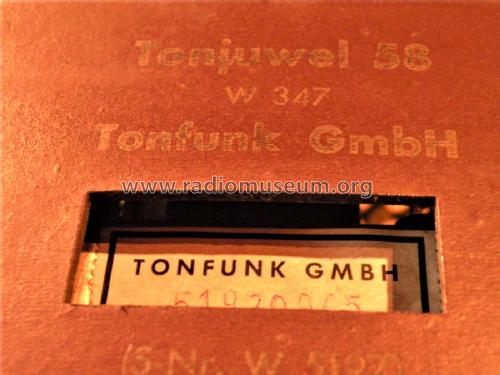

mein Tonjuwel 58 hat auf der Rückwand folgendes stehen:

Tonjuwel 58

W347

Tonfunk GmbH

51970848

(S. Nr. W 5197)

Der Schaltplan passt von diesem Modell.

Wäre es nicht besser, einen Hinweis darauf zu setzen?



Mit freundlichen Grüßen

Helmut Frings

Helmut Frings, 09.May.09

Weitere Posts (3) zu diesem Thema.
