• Country
• Germany

• Manufacturer / Brand
• Tonfunk GmbH; Karlsruhe

• Year
• 1956/1957

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 25426

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM80 EL84 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 120/220 Volt

• Loudspeaker
• 5 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Tonjuwel Luxus W346g [3 Lsp.] - Tonfunk GmbH; Karlsruhe

• Dimensions (WHD)
• 645 x 410 x 260 mm / 25.4 x 16.1 x 10.2 inch

• Notes

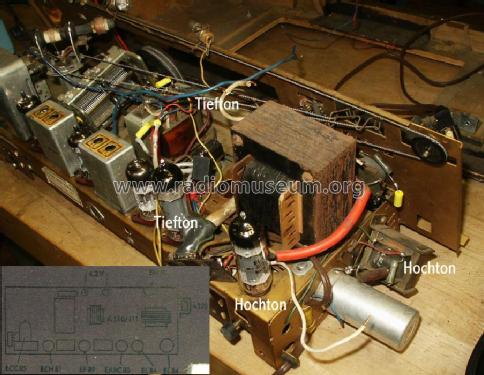

• Zwei Endröhren für getrennten Hoch- und Tieftonkanal.

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• Price in first year of sale
• 389.00 DM

• Source of data
• HdB d.Rdf-& Ferns-GrH 1956/57 / Radiokatalog Band 2, Ernst Erb
