Violetta W125H

Violetta W125H; Tonfunk GmbH; (ID = 14789) Radio

Violetta W125H; Tonfunk GmbH; (ID = 1527276) Radio

Violetta W125H; Tonfunk GmbH; (ID = 1527549) Radio

Violetta W125H; Tonfunk GmbH; (ID = 1527551) Radio

Violetta W125H; Tonfunk GmbH; (ID = 1527552) Radio
Violetta W125H; Tonfunk GmbH; (ID = 2537) Radio Violetta W125H; Tonfunk GmbH; (ID = 28097) Radio
Violetta W125H; Tonfunk GmbH; (ID = 28098) Radio Violetta W125H; Tonfunk GmbH; (ID = 19597) Radio
Violetta W125H; Tonfunk GmbH; (ID = 28099) Radio Violetta W125H; Tonfunk GmbH; (ID = 1240048) Radio
Violetta W125H; Tonfunk GmbH; (ID = 1240050) Radio Violetta W125H; Tonfunk GmbH; (ID = 1240054) Radio
Violetta W125H; Tonfunk GmbH; (ID = 1240056) Radio Violetta W125H; Tonfunk GmbH; (ID = 1616365) Radio
Use red slider bar for more.
Violetta W125H; Tonfunk GmbH; (ID = 2537) Radio
Tonfunk GmbH;: Violetta W125H [Radio] ID = 2537 691x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Violetta W125H, Tonfunk GmbH; Karlsruhe

Country:  Germany
Manufacturer / Brand:  Tonfunk GmbH; Karlsruhe
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: EC92 ECH81 EF89 EABC80 EM80 EL84
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Violetta W125H - Tonfunk GmbH; Karlsruhe
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 355 x 225 x 180 mm / 14 x 8.9 x 7.1 inch
Notes Tonfunk Violetta W125H hat eine schaltbare Schallwandbeleuchtung.
Price in first year of sale 224.00 DM
External source of data E. Erb 3-907007-36-0
Source of data HdB d.Rdf-& Ferns-GrH 1955/56 / Radiokatalog Band 2, Ernst Erb

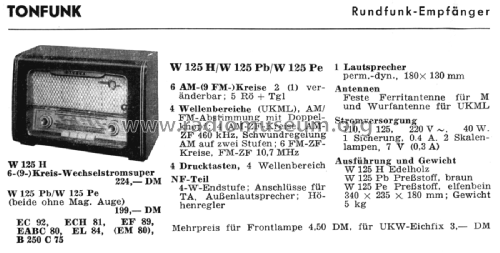

Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Tonfunk GmbH; Karlsruhe
Here you find 560 models, 311 with images and 233 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
