Violetta W331(F)

Violetta W331; Tonfunk GmbH; (ID = 86172) Radio
Violetta W331; Tonfunk GmbH; (ID = 748985) Radio Violetta W331; Tonfunk GmbH; (ID = 748986) Radio
Violetta W331; Tonfunk GmbH; (ID = 748987) Radio Violetta W331; Tonfunk GmbH; (ID = 748988) Radio
Violetta W331; Tonfunk GmbH; (ID = 748989) Radio Violetta W331; Tonfunk GmbH; (ID = 748990) Radio
Violetta W331; Tonfunk GmbH; (ID = 748991) Radio Violetta W331; Tonfunk GmbH; (ID = 748992) Radio
Use red slider bar for more.
Violetta W331; Tonfunk GmbH; (ID = 748985) Radio
Tonfunk GmbH;: Violetta W331 [Radio] ID = 748985 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Violetta W331(F), Tonfunk GmbH; Karlsruhe

Country:  Germany
Manufacturer / Brand:  Tonfunk GmbH; Karlsruhe
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: EC92 EC92 ECC81 ECH81 EM85 EF85 EF41 EABC80 EL84
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)     11 FM circuit(s)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Violetta W331 - Tonfunk GmbH; Karlsruhe
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 610 x 400 x 280 mm / 24 x 15.7 x 11 inch
Notes Wellenbereich: LW, MW, KW, UKW und Fernsehton. 7 Tasten. [5. Taxliste Franzis-Verlag, 1957]
Price in first year of sale 398.00 DM
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

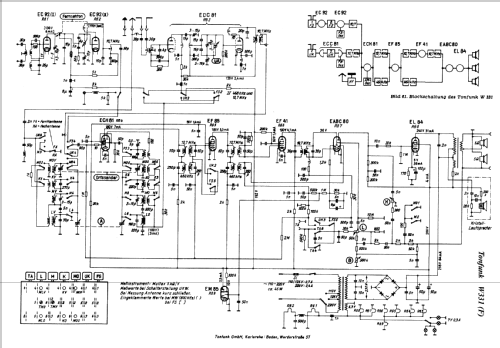

Literature/Schematics (1) -- Original-techn. papers. (FS-Schaltungssammlung 1955 Nr.33, S.39)


All listed radios etc. from Tonfunk GmbH; Karlsruhe
Here you find 558 models, 309 with images and 236 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
