• Country
• Germany

• Manufacturer / Brand
• Tonfunk GmbH; Karlsruhe

• Year
• 1953/1954

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 108644

• Number of Tubes
• 10

• Valves / Tubes
• EC92 EC92 EC92 EC92 EM85 ECH81 EF41 EAF42 EABC80 EL84 150C2

• Main principle
• Superheterodyne (common); ZF/IF 468/10700 kHz

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

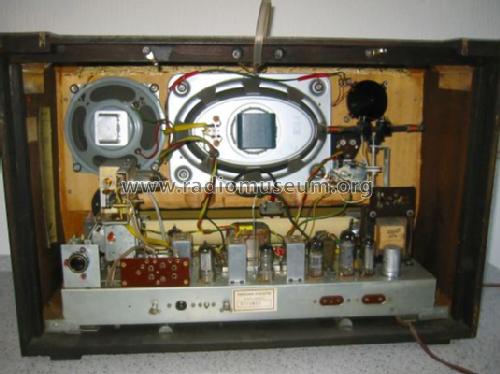

• Model: Violetta W331F [10 Rö] - Tonfunk GmbH; Karlsruhe

• Shape
• Tablemodel with Push Buttons.

• Notes
• Separater FS-Ton-Tuner.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.

• Other Models

• Here you find 569 models, 332 with images and 239 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
