Violetta W331N

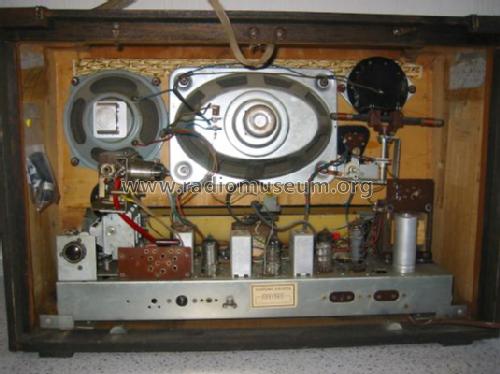

Violetta W331N; Tonfunk GmbH; (ID = 281898) Radio Violetta W331N; Tonfunk GmbH; (ID = 281900) Radio
Violetta W331N; Tonfunk GmbH; (ID = 281901) Radio Violetta W331N; Tonfunk GmbH; (ID = 1962671) Radio
Violetta W331N; Tonfunk GmbH; (ID = 1979881) Radio Violetta W331N; Tonfunk GmbH; (ID = 1979882) Radio
Use red slider bar for more.
Violetta W331N; Tonfunk GmbH; (ID = 281898) Radio
Tonfunk GmbH;: Violetta W331N [Radio] ID = 281898 535x387
Select picture or schematic to display from thumbnails on the right and click for download.
For model Violetta W331N, Tonfunk GmbH; Karlsruhe

Country:  Germany
Manufacturer / Brand:  Tonfunk GmbH; Karlsruhe
Year: 1953/1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: EC92 EC92 ECH81 EF41 EM85 EAF42 EABC80 EL84
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Violetta W331N - Tonfunk GmbH; Karlsruhe
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 610 x 400 x 280 mm / 24 x 15.7 x 11 inch
Notes [5. Taxliste Franzis-Verlag, 1957]
Net weight (2.2 lb = 1 kg) 13.5 kg / 29 lb 11.8 oz (29.736 lb)
Price in first year of sale 348.00 DM
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data -- Collector info (Sammler) / Radiokatalog Band 2, Ernst Erb
