Violetta W331S/N 3D

Violetta W331S/N 3D; Tonfunk GmbH; (ID = 106277) Radio

Violetta W331S/N 3D; Tonfunk GmbH; (ID = 1488384) Radio

Violetta W331S/N 3D; Tonfunk GmbH; (ID = 1488385) Radio
Violetta W331S/N 3D; Tonfunk GmbH; (ID = 36865) Radio Violetta W331S/N 3D; Tonfunk GmbH; (ID = 36866) Radio
Violetta W331S/N 3D; Tonfunk GmbH; (ID = 36867) Radio Violetta W331S/N 3D; Tonfunk GmbH; (ID = 1191616) Radio
Use red slider bar for more.
Violetta W331S/N 3D; Tonfunk GmbH; (ID = 36865) Radio

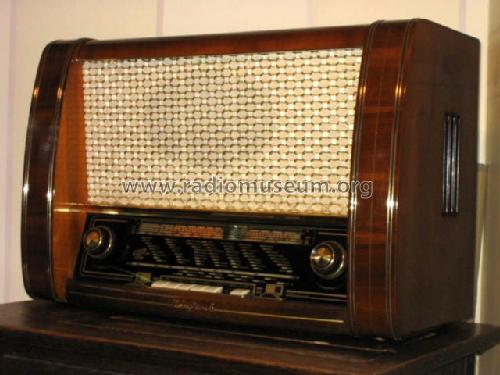

Tonfunk GmbH;: Violetta W331S/N 3D [Radio] ID = 36865 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Violetta W331S/N 3D, Tonfunk GmbH; Karlsruhe

Country:  Germany
Manufacturer / Brand:  Tonfunk GmbH; Karlsruhe
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECC85 ECH81 EF85 EABC80 EM80 EL84
Semiconductors (the count is only for transistors) Tr.Gl.=Metal-rectif.
Main principle Super-Heterodyne (Super in general); ZF/IF 460/10700 kHz
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 220 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: Violetta W331S/N 3D - Tonfunk GmbH; Karlsruhe
Material Wooden case
Shape Tablemodel with Push Buttons.
Notes Eingang für Fernseh-Ton-ZF 21 MHz vom Tonfunk Bildempfänger,
z.B. FB211. Wird im Radio umgesetzt auf die UKW-ZF 10,7 MHz.
Ortssender auf Mittelwelle rückseitig einstellbar.
Price in first year of sale 368.00 DM
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data -- Schematic / Radiokatalog Band 2, Ernst Erb
Mentioned in Taxliste Franzis Verlag (5. Ausgabe, 1957)


All listed radios etc. from Tonfunk GmbH; Karlsruhe
Here you find 555 models, 298 with images and 230 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
