• Country
• Germany

• Manufacturer / Brand
• Tonfunk GmbH; Karlsruhe

• Year
• 1955 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 137599

• Number of Tubes
• 7

• Valves / Tubes
• ECC85 ECH81 EF85 EABC80 EM80 EL84

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 6 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details

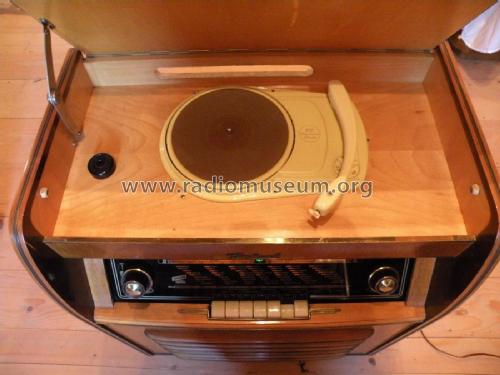

• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220 Volt

• Loudspeaker

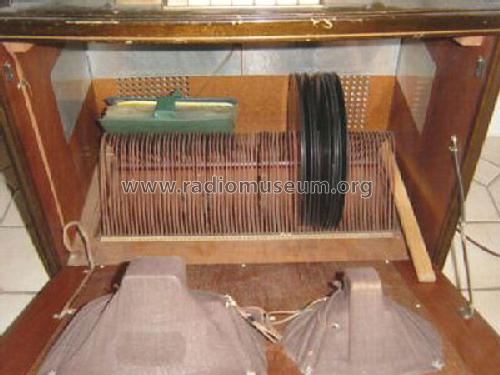

• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

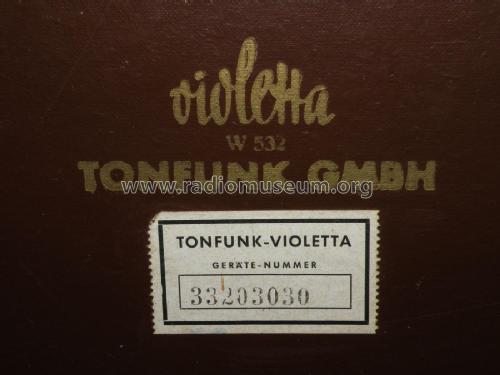

• Model: Violetta W532 [4 Lsp.] - Tonfunk GmbH; Karlsruhe

• Shape

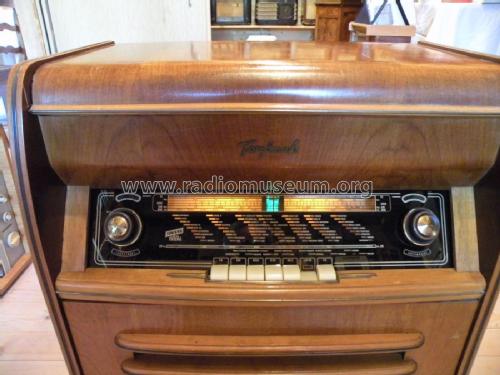

• Console with Push Buttons.

• Dimensions (WHD)
• 570 x 740 x 370 mm / 22.4 x 29.1 x 14.6 inch

• Notes

• Chassis wie Tonfunk W332

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.

• Other Models

• Here you find 569 models, 332 with images and 239 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
