• Country
• Germany

• Manufacturer / Brand
• Tonfunk GmbH; Karlsruhe

• Year
• 1955/1956

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 20510

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EM80 EL84

• Number of Transistors

• Semiconductors
• B250C90

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker
• 3 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org

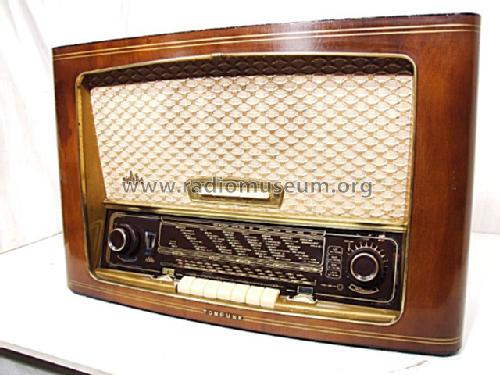

• Model: Violetta W345KL/3D [3 Lautspr.] - Tonfunk GmbH; Karlsruhe

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 640 x 410 x 245 mm / 25.2 x 16.1 x 9.6 inch

• Notes
• mit Fünffach-Klangregister

• Net weight (2.2 lb = 1 kg)
• 8.8 kg / 19 lb 6.1 oz (19.383 lb)

• Price in first year of sale
• 369.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1955/56 / Radiokatalog Band 2, Ernst Erb
