- Country
- Italy
- Manufacturer / Brand
- Trans Continents (Prandoni); Milano, Treviglio
- Year
- 1960/1961
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 145204
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110-220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
- Material
- Wooden case
- from Radiomuseum.org

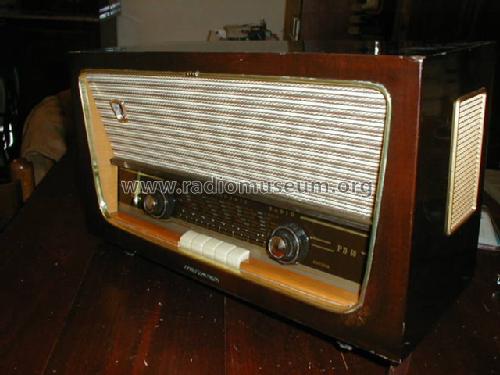

- Model: PD60 - Trans Continents Prandoni;
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 500 x 290 x 190 mm / 19.7 x 11.4 x 7.5 inch
- Net weight (2.2 lb = 1 kg)
- 6 kg / 13 lb 3.5 oz (13.216 lb)
- Source of data
- - - Data from my own collection
- Author
- Model page created by Claudio Romanato. See "Data change" for further contributors.
