AM/FM/LW Stereo Multiplex Receiver KW-33L

• Country
• Japan

• Manufacturer / Brand
• Kenwood, Trio-Kenwood Inc.; Komagane

• Year
• 1963 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 171042

• • alternative name: Trio Corp.
  • Brand: Jennen

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

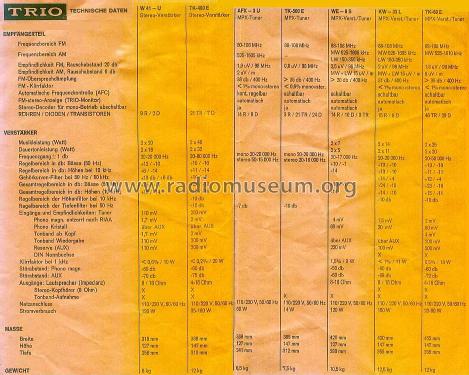

• Number of Tubes
• 15

• Valves / Tubes
• 6BE6 ECC85 ECC85 6BA6 6BA6 6BA6 EF94 6BL8 ECC83 ECC83 ECC83 ECL82 ECL82 ECL82 ECL82

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110-117; 220-230 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org
• Model: AM/FM/LW Stereo Multiplex Receiver KW-33L - Kenwood, Trio-Kenwood Inc.;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 425 x 125 x 360 mm / 16.7 x 4.9 x 14.2 inch

• Notes

• Trio AM/FM/LW Stereo Multiplex Receiver KW-33L. Some examples are named AM/FM Stereo Multiplex Receiver. Similar to the Trio KW-33 AM/FM Stereo Multiplex Receiver which has no LW band.

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Bernhard Nagel. See "Data change" for further contributors.
