• Country
• Germany

• Manufacturer / Brand
• Uher Werke; München

• Year
• 1960–1963

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 22919

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• EF86 ECC81 EC92 EL95 EM84

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

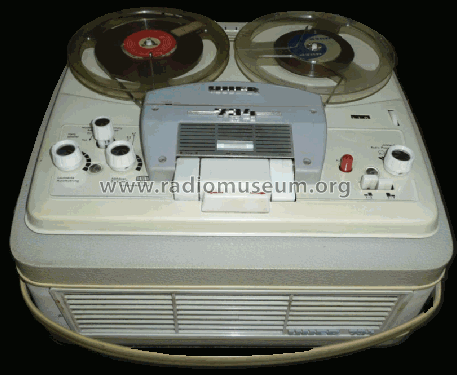

• Model: 734 - Uher Werke; München

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 340 x 175 x 370 mm / 13.4 x 6.9 x 14.6 inch

• Notes
• Vierspur; 4,75/9,5/19 cm/s. Spulen-Ø 18 cm.

• Net weight (2.2 lb = 1 kg)
• 11.7 kg / 25 lb 12.3 oz (25.771 lb)

• Price in first year of sale
• 598.00 DM

• External source of data
• Erb

• Source of data
• HdB d.Rdf-& Ferns-GrH 1961/62 / Radiokatalog Band 2, Ernst Erb

• Other Models

• Here you find 342 models, 315 with images and 175 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
