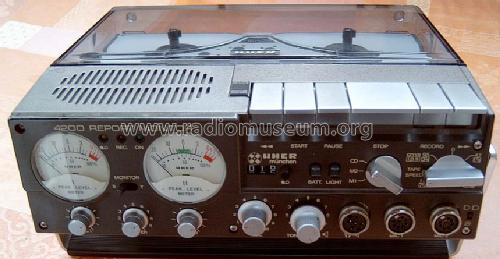

Report Monitor 4200; Uher Werke; München (ID = 1475810) R-Player Report Monitor 4200; Uher Werke; München (ID = 1244585) R-Player

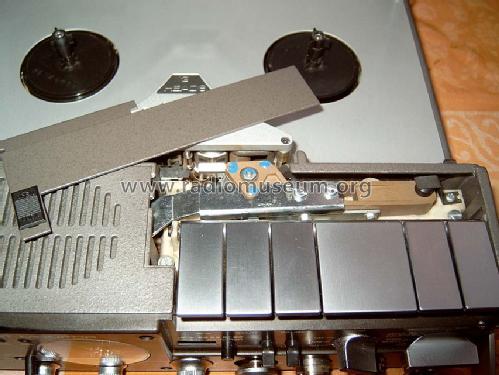

Report Monitor 4200; Uher Werke; München (ID = 1244586) R-Player Report Monitor 4200; Uher Werke; München (ID = 1244587) R-Player
Report Monitor 4200; Uher Werke; München (ID = 1244588) R-Player
Use red slider bar for more.
Report Monitor 4200; Uher Werke; München (ID = 1475810) R-Player
Uher Werke; München: Report Monitor 4200 [R-Player] ID = 1475810 933x548
Select picture or schematic to display from thumbnails on the right and click for download.
For model Report Monitor 4200 var2, Uher Werke; München

Country:  Germany
Manufacturer / Brand:  Uher Werke; München
Year: 1979 ?? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 115: BC327 BC337-25 BC368 BC369 BC547 BC548 BC550 BC557 BC558 BC560 BD135 BF299 J176 CA3096 LM340LAx-y MC14555 CD4001 CD4011 CD4013 CD4081
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Line / Batteries (any type) / 100-130; 200-240 / 6 (Akku); 5 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Report Monitor 4200 [var2] - Uher Werke; München
Material Metal case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 285 x 100 x 235 mm / 11.2 x 3.9 x 9.3 inch
Notes

Das Modell unterscheidet sich von var1 durch die braungraue Gehäusefarbe, dem Vollklarsicht-Klappdeckel, Tastenblock größtenteils aus Kunststoff, Tasten verchromt und die Tastenabdeckung mit Schiebeverschluß.

2-Spur-Stereo-Modell; Hinterband-Kontrolle; Bandgeschwindigkeiten: 2,4/ 4,75/ 9,5/ 19 cm/s; Spulen-Ø 13 cm.

Transistoren sind nur einmal pro Typ gelistet.

Net weight (2.2 lb = 1 kg) 3.8 kg / 8 lb 5.9 oz (8.37 lb)
Documents regarding this model
  Instructions d'emploi UHER 4200-4400 3491 KB

Model page created by Günter Kudicke. See "Data change" for further contributors.
