For model Bolex Paillard Sonorizer, Paillard AG; St. Croix:
Ebay user ahles-gelerrsch 120844950365

Country:  Switzerland
Manufacturer / Brand:  Paillard AG; St. Croix
Year: 1960 Category: Audio Amplifier or -mixer
Valves / Tubes 5: EF86 ECC83 EC92 EL84 EM84
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Bolex Paillard Sonorizer - Paillard AG; St. Croix
Material Leather / canvas / plastic - over other material
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 10 x 12 x 14.5 inch / 254 x 305 x 368 mm
Notes Bolex Paillard Sonorizer;
Description from Bolexcollector.com:

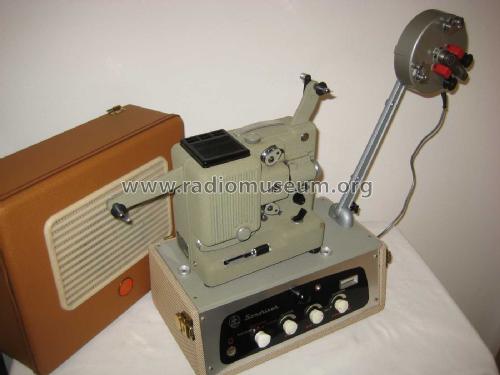

"Introduced in 1960 and manufactured in Germany, the Sonorizer allowed sound to be added to 8mm films. Narration, sound effects or music could be recorded onto film with a magnetic stripe while the film was being projected. The device consisted of an amplifier, sound head, speaker and directional microphone. Film from the feed reel of the projector was threaded through the sound head and back through the gate. This sound head allowed an audio track to be played, erased or recorded. The amp and speaker could be latched together to form a portable unit with handle..."
Net weight (2.2 lb = 1 kg) 28.5 lb (28 lb 8 oz) / 12.939 kg
Mentioned in -- Original prospect or advert (Paillard-Bolex GmbH, München: Ihr Vorführgerät wird zum Magnetton-Projektor durch BOLEX Sonorizer)

Model page created by a member from A. See "Data change" for further contributors.
