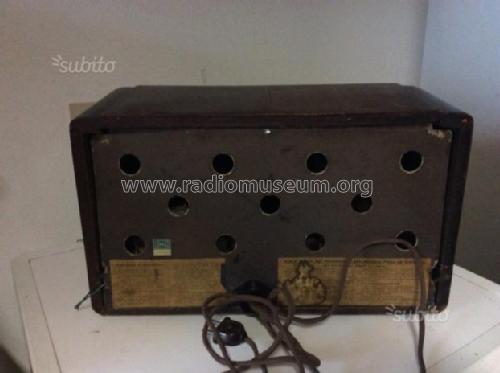

Tri Unda 535
Unda Radio; Como, Dobbiaco
- Country
- Italy
- Manufacturer / Brand
- Unda Radio; Como, Dobbiaco
- Year
- 1940 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 127350
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 450 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC)
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- from Radiomuseum.org
- Model: Tri Unda 535 - Unda Radio; Como, Dobbiaco
- Notes
-
In tutto simile al modello Tri-Unda 533, ha in più un indicatore di sintonia a proiezione d'ombra, Lesa modello D indicato in una modifica alla 6K7.
Autotrasformatore: Telaio collegato alla rete elettrica. Non tutti i casi sono dichiarati poichè spesso chi propone il modello non lo può sapere.
- Literature/Schematics (1)
- -- Original-techn. papers. (D.E. Ravalico: Servizio Radiotecnico vol. II. Radioriparazioni. 8^ Edizione. Hoepli, Milano, 1952.)
- Literature/Schematics (2)
- -- Schematic (Il Radio Libro D.E. Ravalico, ottava edizione - Hoepli – 1945)
- Author
- Model page created by Marco Gilardetti. See "Data change" for further contributors.
- Other Models
-
Here you find 242 models, 160 with images and 177 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Unda Radio; Como, Dobbiaco
