• Year
  • 1960 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 234695

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
  • Power type and voltage
  • AC/DC-set / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Wooden case
  • from Radiomuseum.org

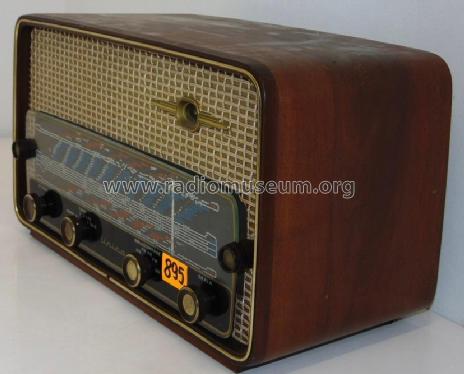

  • Model: Oscar 7015 - Unica Radio, Rudolph Schmidt;
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 475 x 280 x 235 mm / 18.7 x 11 x 9.3 inch
  • Net weight (2.2 lb = 1 kg)
  • 7.3 kg / 16 lb 1.3 oz (16.079 lb)
  • Author
  • Model page created by Thomas Welti. See "Data change" for further contributors.
