• Year
  • 1955
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 277882

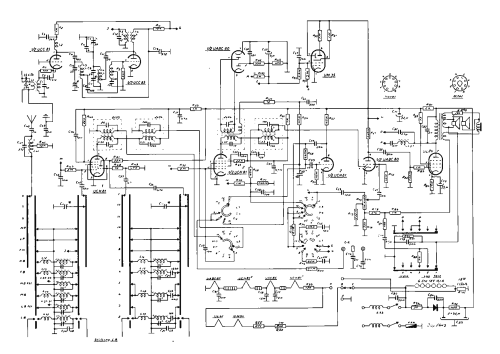

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)     9 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
  • Power type and voltage
  • AC/DC-set / 110-220 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Zephyr 7002 - Unica Radio, Rudolph Schmidt;
  • Shape
  • Tablemodel, low profile (big size).
  • Net weight (2.2 lb = 1 kg)
  • 13 kg / 28 lb 10.1 oz (28.634 lb)
  • Mentioned in
  • -- Schematic
